Carbon road cockpit V2
CYKL RTE-02 Carbon Road Cockpit – Rigidity, Lightness, Aerodynamics
Developed for our CYKL SWIIFT road bike and perfectly compatible with our CYKL RAAVE gravel bike, the new RTE-02 cockpit embodies the evolution of our vision: a stiffer , lighter and even more efficient cockpit.
Technical development, concrete gains
Designed in high modulus Japanese carbon T800 TORAY , the RTE-02 benefits from an optimized structure which offers:
- +15% stiffness for increased control in restarts and sprints,
- 5% less weight compared to the previous version,
- A revised shape for a more aerodynamic and modern profile.
New carbon GPS interface included

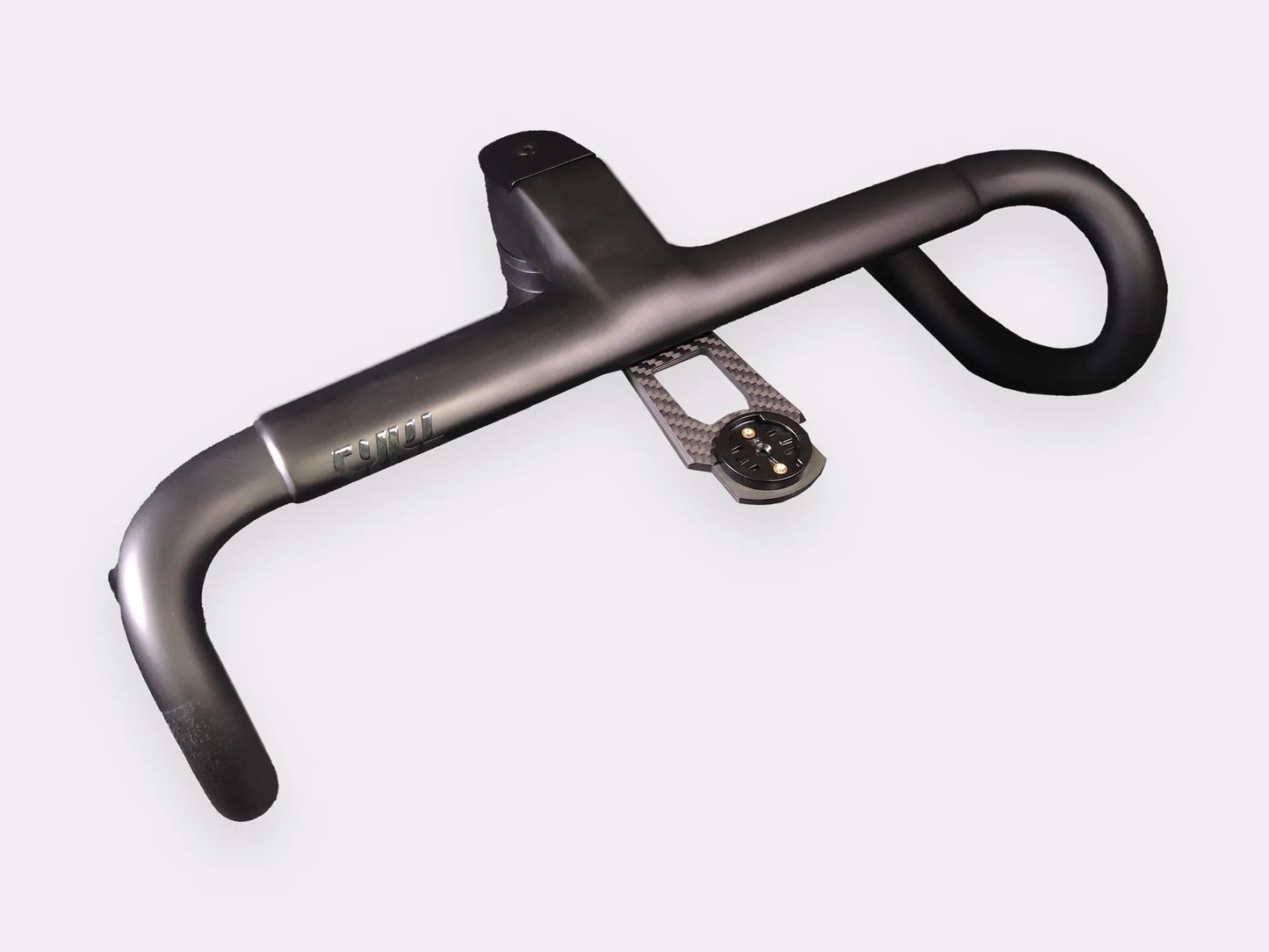

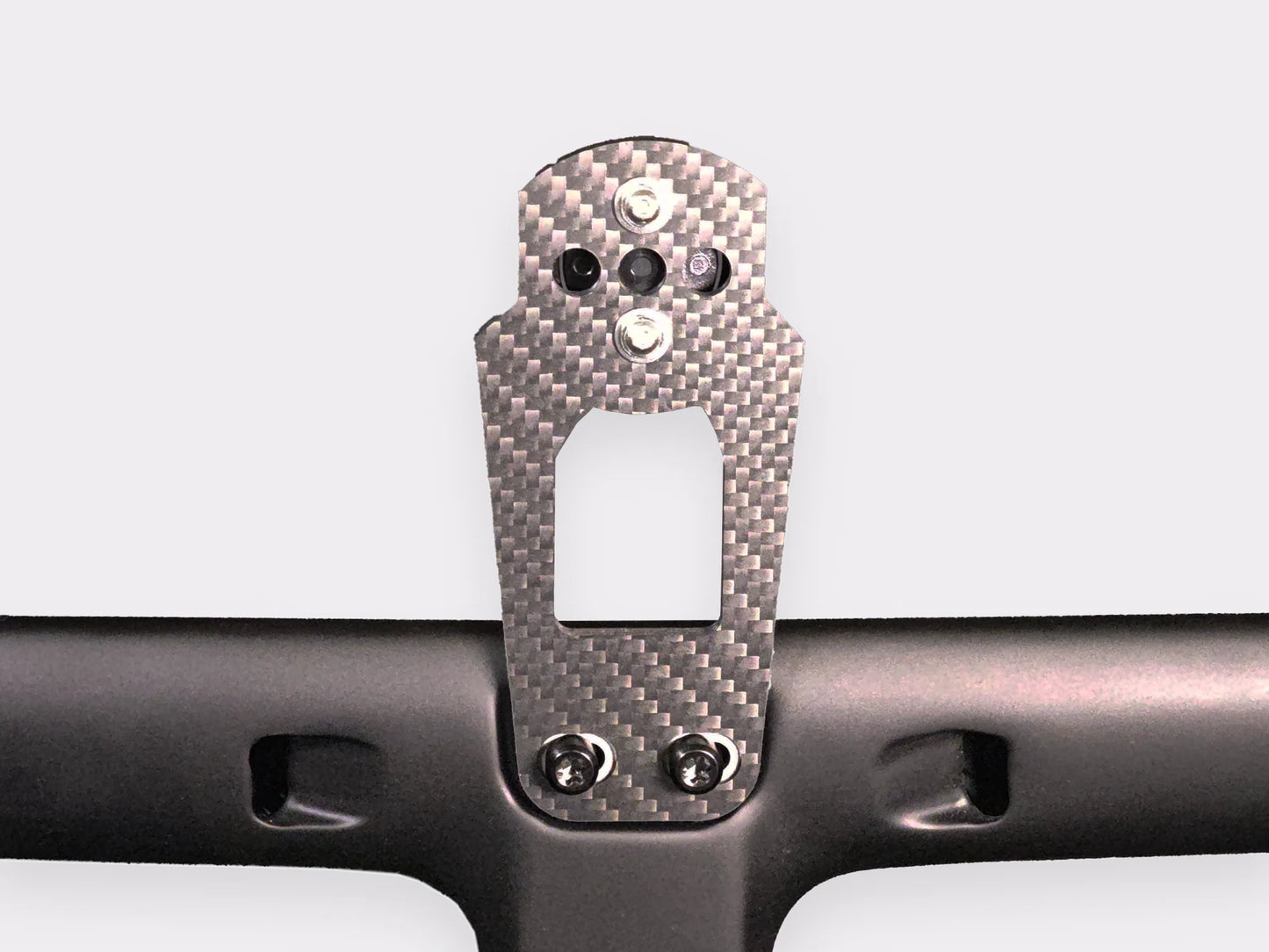

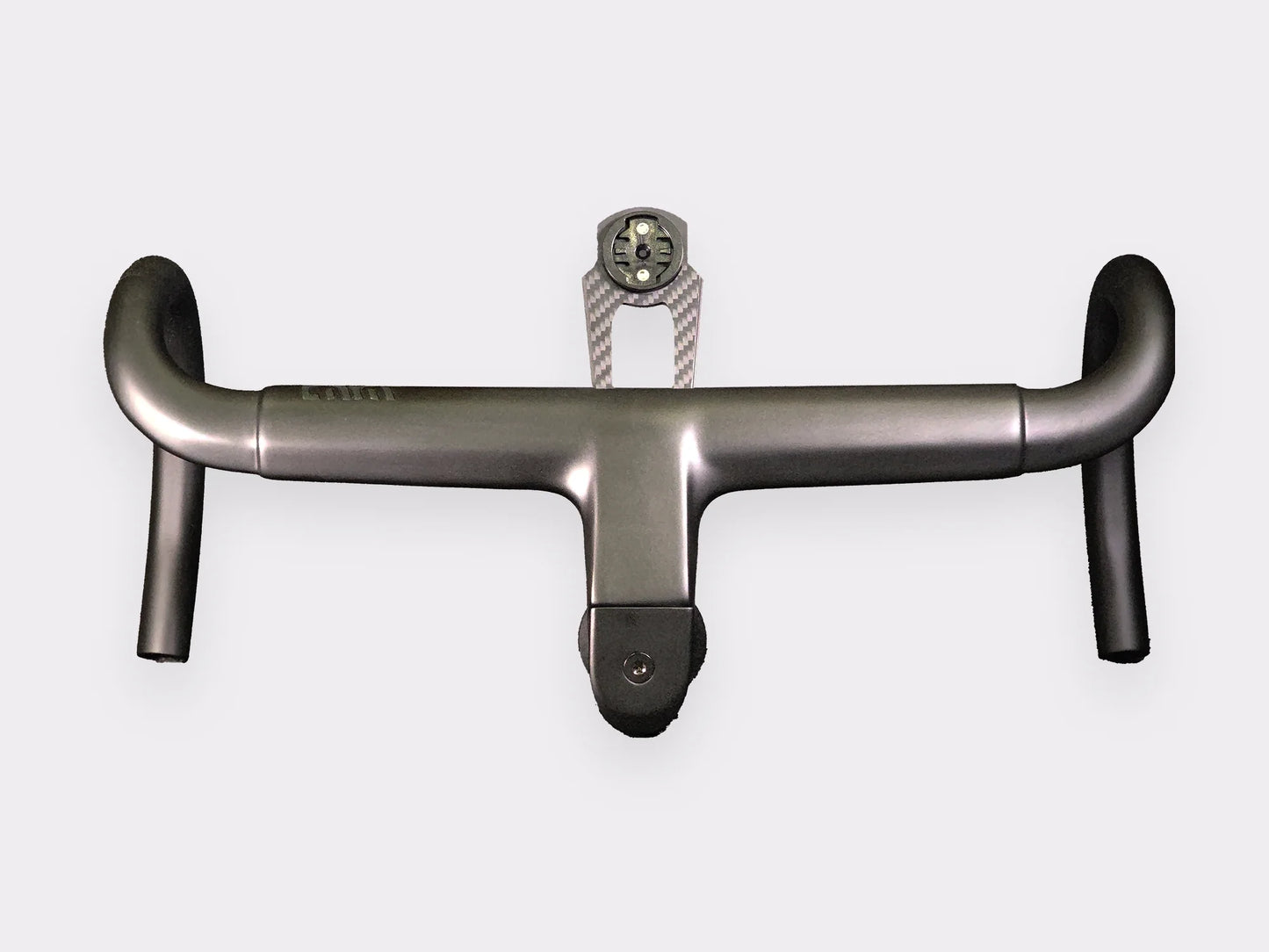

The RTE-02 cockpit now includes an ultra-light and streamlined carbon GPS mount , offered with the cockpit :
- Compatible with most meters on the market (Garmin, Wahoo, etc.)
- Includes a built-in GoPro/light mount under the GPS
- Easy installation via a double screw fixing system
High-end finish

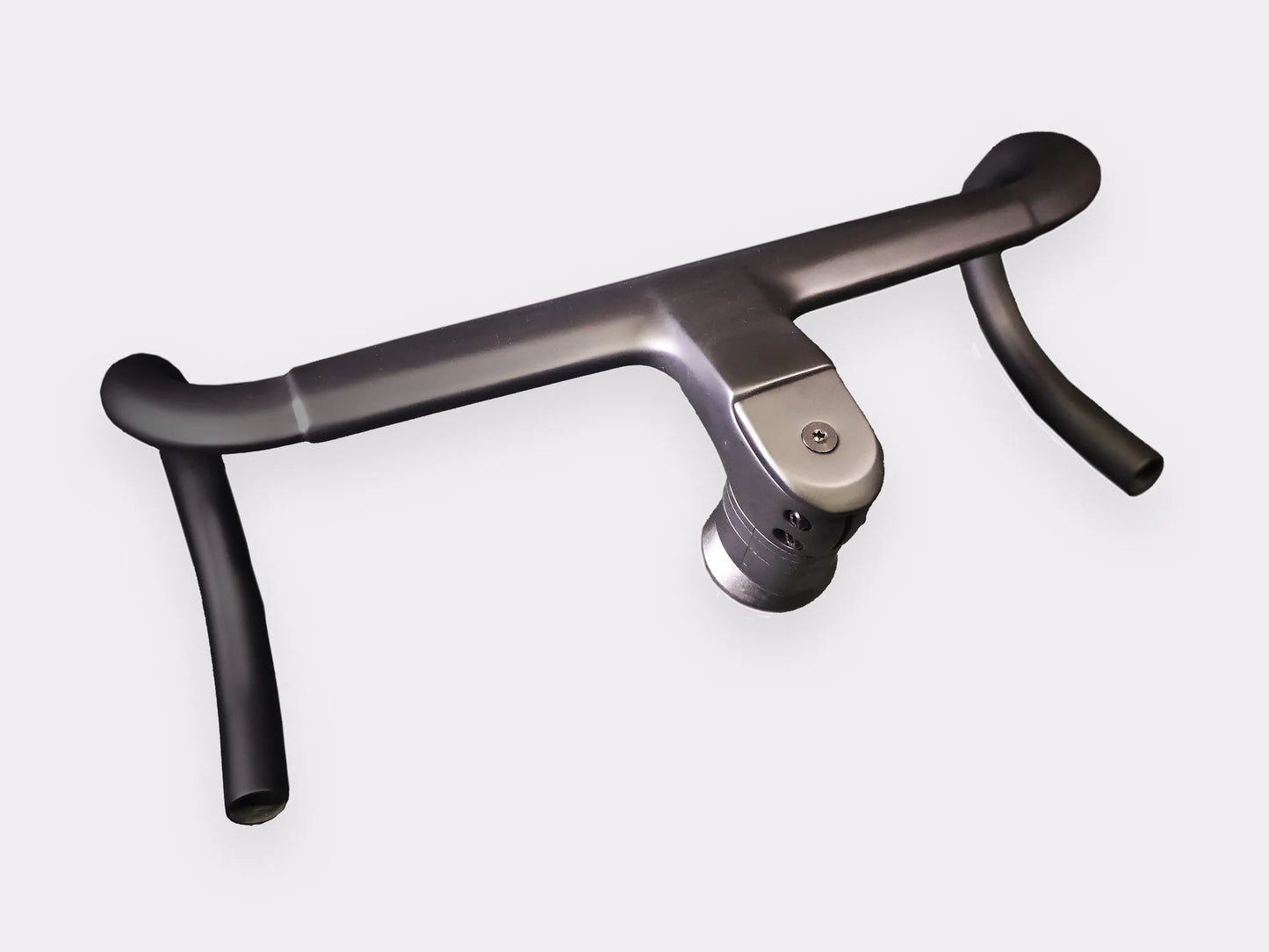

- Carbon stem cap with titanium screws
- Black anodized titanium screws for a sleek and durable finish
- Ergonomic flat top and drops to limit pressure on hands and reduce numbness
- Internal or semi-internal conduit passage compatible with the majority of modern frames
Sizes and Compatibility
The RTE-02 cockpit is available in the following configurations:
- Widths : 360 / 380 / 400 / 420 / 440 mm (axis to axis)
- Stem lengths : 70 / 80 / 90 / 100 / 110 / 120 mm
Compatible with OD2 steering systems (28.6 mm diameter).
⚠️ This cockpit is designed for frames with internal or semi-internal cable routing. Check compatibility with your frame. If in doubt, contact us.
Technical summary
| Specifications | Details |
|---|---|
| Area of use | Road, Gravel, Cyclocross |
| Material | TORAY T800 carbon fiber |
| Weight | -5% compared to RTE-01 |
| Rigidity | +15% (more direct steering) |
| Available hanger widths: | 360/380/400/420/440 mm |
| Available stem lengths | 70/80/90/100/110/120 |
| Passage of the ducts: | Full internal and semi-internal |
| Corner : | -10° |
| Drop | 128 mm |
| Reach | 84 mm |
| Fork diameter | 28.6 mm with adapter |
| Weight | 340g (420mm wide, 100mm stem) |
Boost your cockpit with the RTE-02 cockpit
Order now from CYKL.Store and equip your bike with a cockpit that is high-performance , rigid and elegant .
Scope of delivery
- 1 x Cockpit CYKL-RTE-02
- 1x carbon stem cap
- 1 x 20mm spacer
- 1 x 10mm spacer
- 1 x 5mm spacer
- 1 x Carbon GPS Meter Holder
- 1x mounting system for Garmin, Wahoo computer
