MONO frame kit

MONO – The essential and evolving titanium bike

Why MONO?

The idea behind MONO is simple: to offer an accessible, durable, repairable and scalable titanium bike. A bike designed to last, that everyone can maintain and adapt to their needs over time.

If you could only have one bike? It would be MONO . Available as a frameset or complete bike , it will go with you everywhere: road , trails , remote paths, bikepacking or daily commutes .

• MONO bike – The essentials without the frills.
• MONO product – A design built to last.
• MONO chainring – A sleek and efficient transmission.
• MONO color – A timeless and minimalist style.
• MONO trace – A bike for going far and long.

NoMo

• No More : A no-compromise bike that you won't need more of.
• No Money : Ride titanium without breaking the bank.
• No More Trouble : Easy to repair, simple to upgrade.
• Mana + Mojo = MONO : An intuitive power, inspired by adventure.

MONO – The ultimate tool for everything

MONO is the Swiss Army knife of cycling . It adapts to all uses: from sporty gravel to committed bikepacking, including daily cycling .

1. A framework designed to last and evolve

• Use of standard and affordable components available everywhere.
• Smart design elements for maximum modularity:
• Luggage rack inserts on the rear triangle.
• Front and rear mudguard mounts.
• Three attachment points for bottle cages or tool boxes.

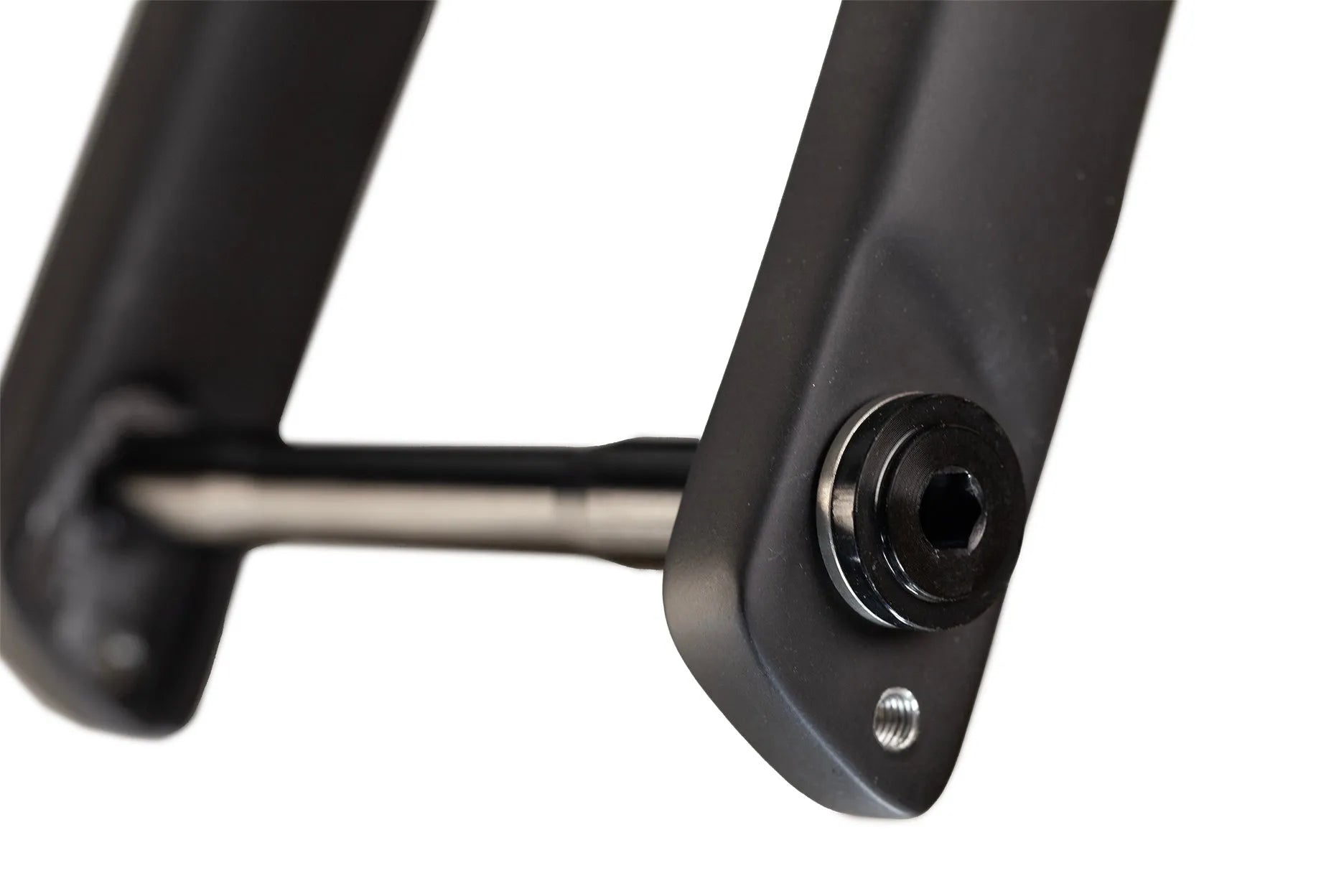

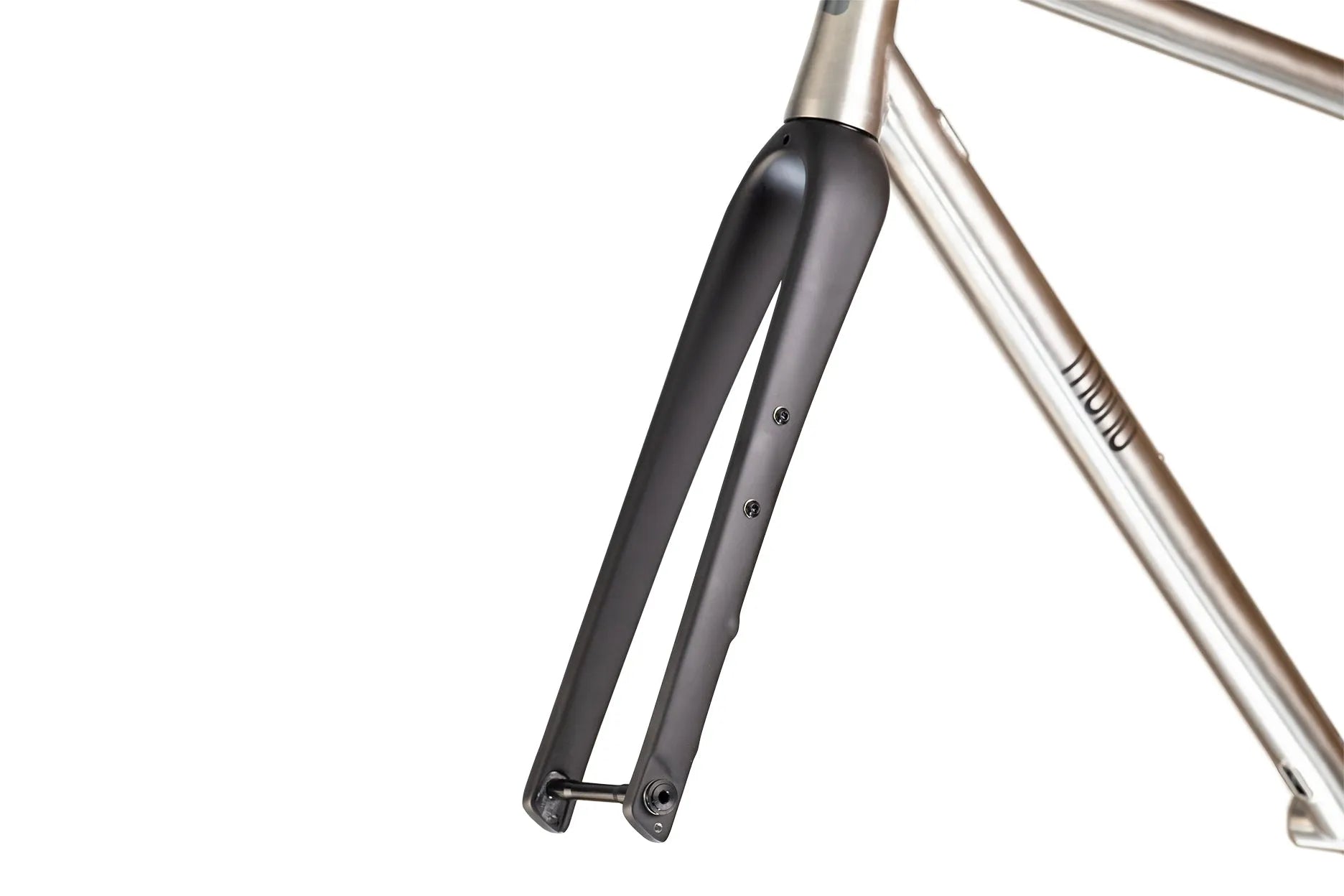

• Carbon fork with four inserts on each side for bags or luggage racks.

2. A design thought out for repairability and evolution

• Simplified assembly and maintenance , with a minimum of tools:
• A set of Allen keys and a bottom bracket wrench are all you need.

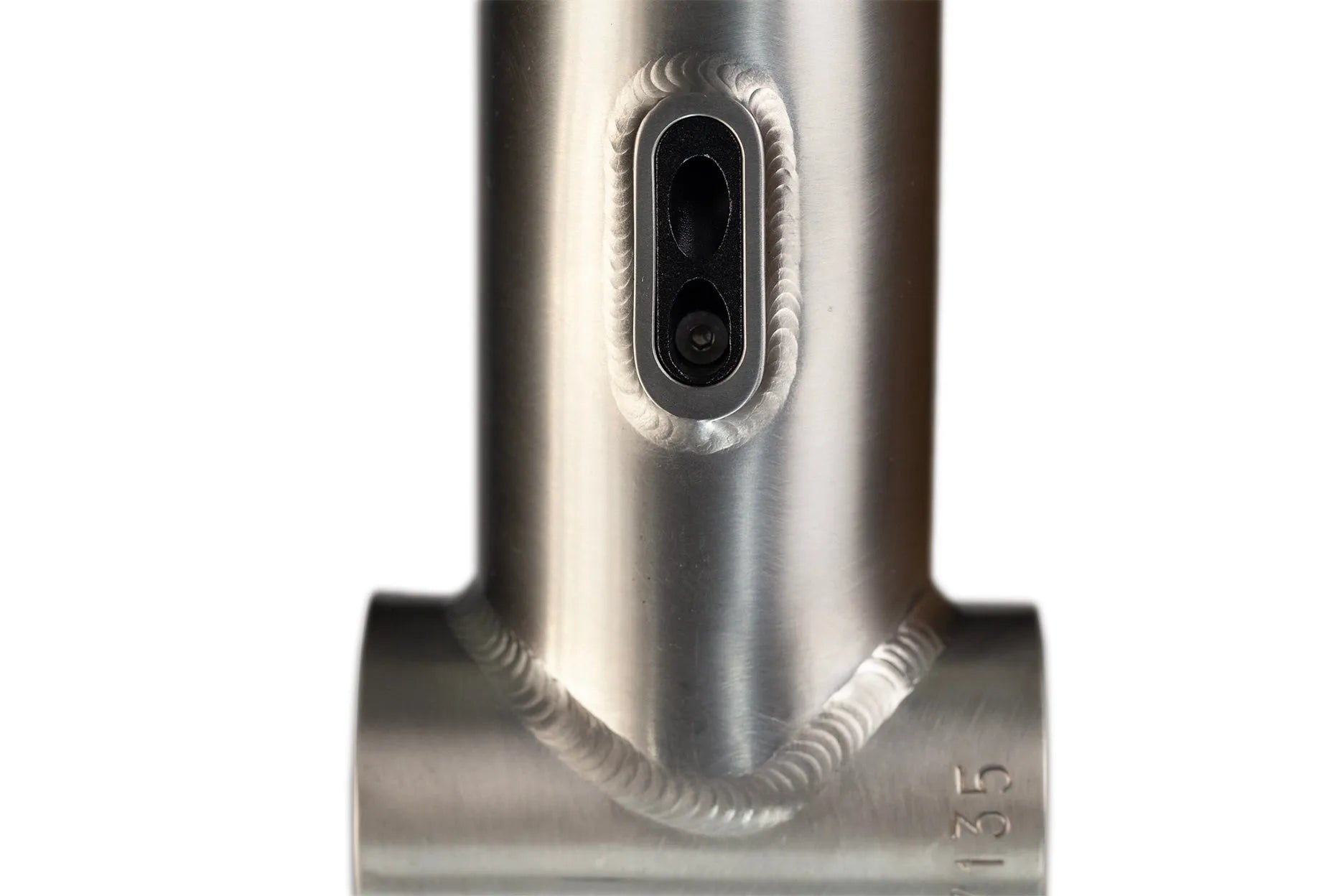

• Semi-integrated duct passages for quick maintenance.
• Standard IS42/52 headset (tool-free installation).

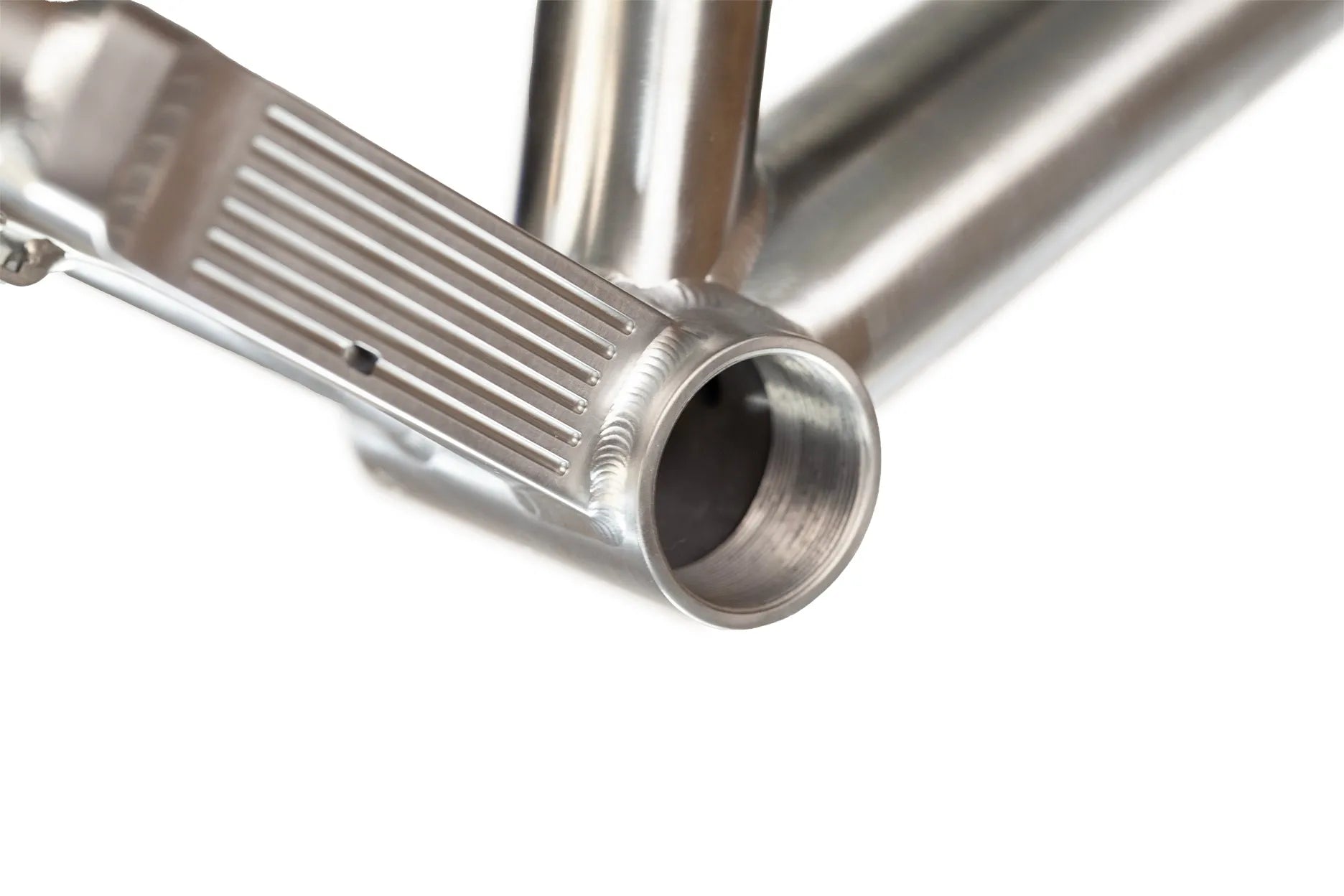

• BSA bottom bracket , easy to maintain and replaceable anywhere.
• 27.2 mm seat tube , standard and more comfortable thanks to its natural flexibility.

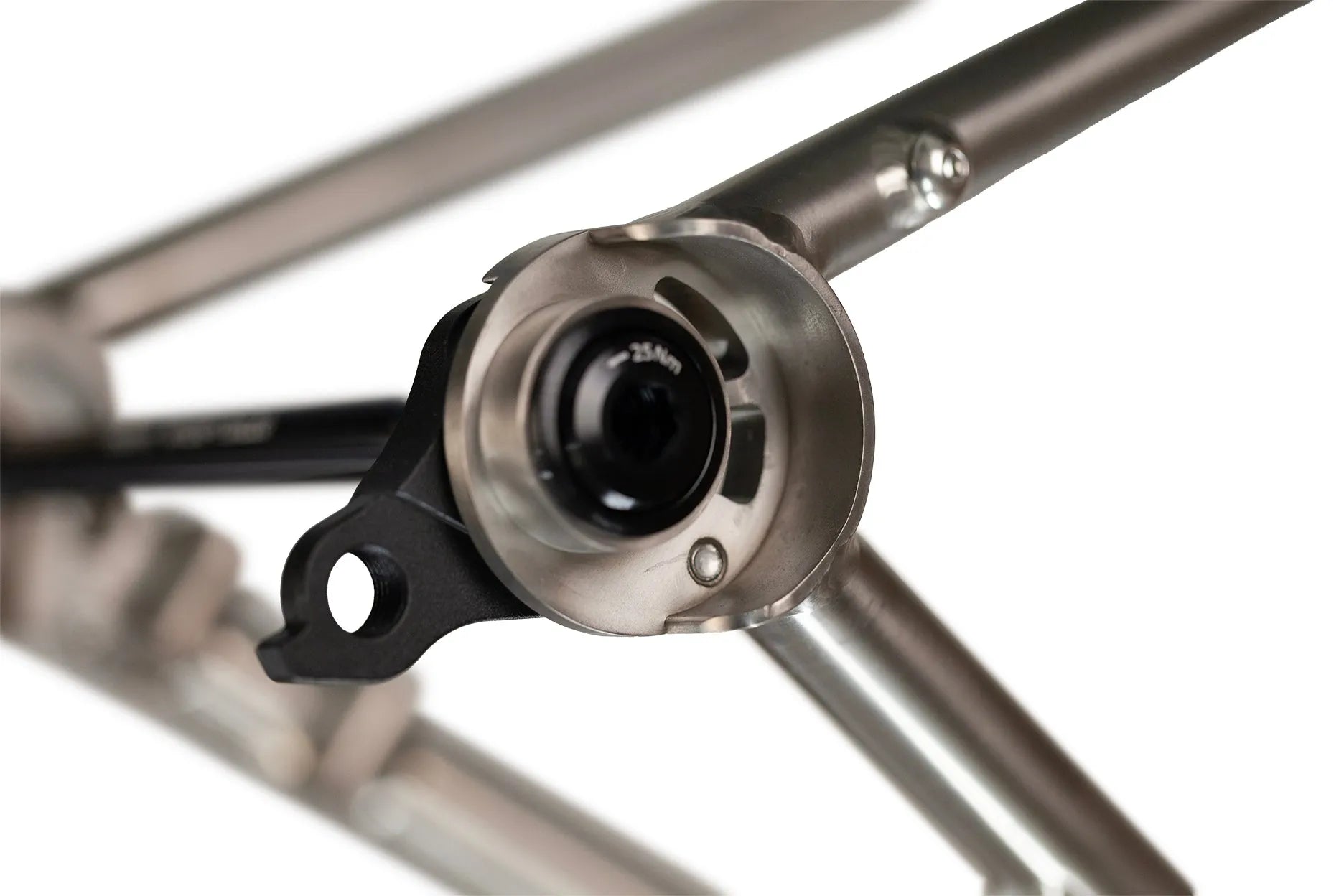

• UDH universal derailleur hanger , found everywhere for less than €10.
• Single-chainring transmission only for simplicity and reliability.

Geometry and Behavior

The MONO sizes are designed to offer comfort while maintaining good responsiveness .

✔ Reach to Stack Ratio: 1.52
→ A perfect balance between comfort and dynamism.

✔ Steering angle: 71°
→ Agile and maneuverable on road and trails.
→ With a 50 mm suspension fork, the angle opens to 70° for more stability.

✔ Lowered bottom bracket (80mm drop on small sizes, 75mm on large sizes)
→ Better control and stability of the bike.

✔ Seat tube angle: 73.5°
→ Reduces front-end pressure, improves comfort without affecting pedaling.

✔ Rear chainstay length: 420 mm (small and medium sizes), 430 mm (large sizes)
→ An ideal compromise between stability and responsiveness .

✔ Optimized ground clearance to limit the risk of contact between the front tire and the shoe.

✔ 71.5mm trail with 50mm fork offset and 50mm tires
→ Increased straight-line stability.
→ Good cushioning on uneven terrain.
→ Smooth and responsive steering on technical trails.

The MONO sizes are designed to offer comfort while maintaining good responsiveness .

Why choose MONO?

• Simplicity and versatility – One bike, ready for anything.
• Quality Materials – A durable and lightweight titanium frame.
• Ease of maintenance – Designed to be repaired and improved over time.
• Affordable Price – Ride titanium without breaking the bank.

With MONO , you no longer need to choose between performance, modularity and accessibility. It's the bike that adapts to your life , not the other way around.
