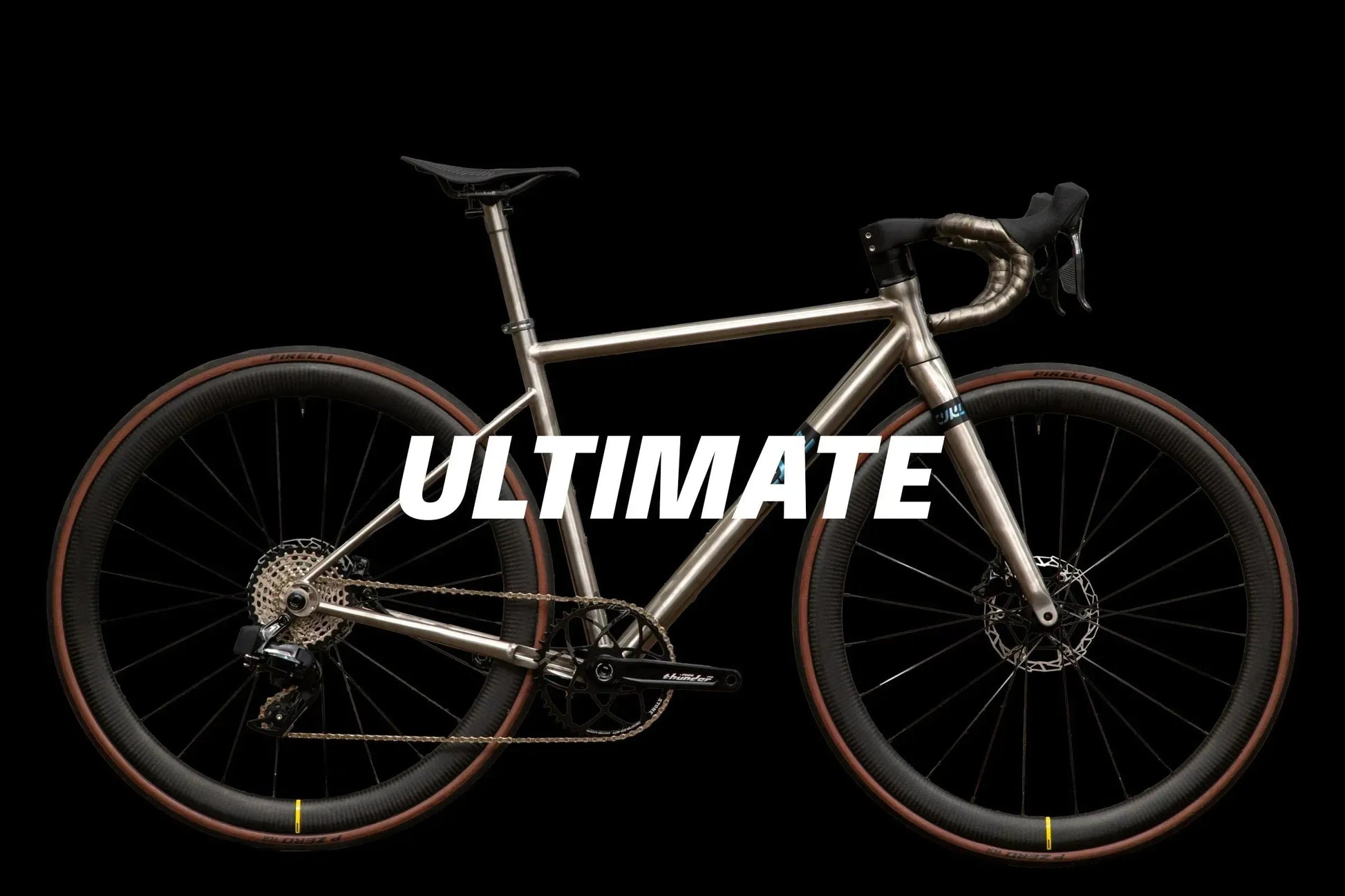

The SWIIFT is our all-road titanium bike, designed for those who want to combine comfort and performance on long rides. This bike is compatible with SHIMANO, SRAM, CAMPAGNOLO, and many other drivetrains, in both mechanical and electronic versions. Designed for cyclists looking for a versatile bike, it is available with titanium or carbon components.
The SWIIFT 2024 features a hydroformed top tube, integrated cable management, and a reinforced bottom bracket to improve stiffness and performance. Learn more about these innovations on our SWIIFT product page.
The Ultimate Pack is the ultimate equipped version of the SWIIFT , the choice for those looking for performance with cutting-edge equipment.
This version of the SWIIFT can obviously be modified and adapted to your vision, each high-end element is selected for its performance and the weight savings it provides. Anything higher would be indecent!
The cockpit is our one-piece carbon road cockpit . Available in several widths 380/400/420/440 and stem lengths 90/100/110/120 mm, It is ultra-light, the stacking of the carbon layers has been optimized to filter vibrations. Fatigue is reduced and you can ride faster, more comfortably, for longer. The cable management is fully integrated. No cable management is visible. The carbon road fork is aerodynamic and weighs only 380 g! The seatpost, also in ultra-light carbon, weighs 140 g, completes this assembly designed to save as much weight as possible.
The fork and seatpost assembly can be upgraded to a 3D-printed titanium fork and seatpost assembly. In addition to the durability of titanium, this manufacturing technique gives the bike greater steering precision. Braking is more precise, and you have total control over your bike when cornering. The assembly can be customized by anodizing with the frame.
The Italia SLR BOOST TEKNO saddle, made entirely of carbon, weighs just 95 g. The SHIMANO DURA ACE electronic drivetrain is the benchmark for high-end drivetrains. The Nova Ride ceramic bottom bracket is made in France.
The chassis is provided by the ELITE HELIX Road wheels (different rim heights available) . This pair of tubeless wheels with carbon spokes are ultra-light, but above all very responsive. In addition, they have a unique look. They also benefit from ceramic bearings which make them really efficient.
| Frame | SWIIFT |
| Headset | First integrated component |
| Fork | CYKL | AERO CARBON ROAD |
| Seat post | CYKL | CARBON | 27.2 mm |
|
Wheels |
ELITE | HELIX | carbon tubeless |
|
Band |
SHIMANO | Dura-Ace Di2 R9250 | 2×12 electronic |
| Crankset | SHIMANO | Dura-Ace Di2 R9250 | 50/34T-52-36T |
| Chain | SHIMANO | Dura-Ace Di2 R9250 |
| Cassette | SHIMANO | Dura-Ace Di2 R9250 | 11-30T |
| Tires | PIRELLI | P-ZERO RACE | 700-28/30/32 |
| Cockpit | CYKL | Fully integrated carbon |
| Saddle | SELLE ITALIA | SLR BOOST TEKNO |
| Handlebar tape | CICLOVATION | Premium gel |
| Discs | SHIMANO | Dura-Ace Di2 R9250 | 160mm |
| Bottom bracket | NOVA RIDE | T47 | Ceramic External Bearings |
| Stem cap | CYKL | titanium + engraved titanium screws |
| BIKE SIZE | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Rider height (cm) | 164 - 169 | 170 - 174 | 175 - 180 | 181 - 186 | 186-189 | > 190 |
| SWIIFT-2024 - Geometry (mm) | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Stack (S) | 509 | 516 | 546 | 565 | 583 | 602 |
| Reach (R) | 373 | 380 | 387 | 394 | 401 | 408 |
| Reach/Stack Ratio | 1.36 | 1.35 | 1.41 | 1.43 | 1.45 | 1.47 |
| Seat tube length (A) | 450 | 480 | 500 | 520 | 520 | 250 |
| Top tube | 509 | 523 | 543.5 | 561 | 579 | 598 |
| Effective top tube (EFFTT) | 498 | 513 | 530 | 546 | 560 | 579 |
| Top tube slope (TTS) | 12 | 9.3 | 10 | 10° | 10.2° | 9.5° |
| Head tube angle (B) | 70.5 | 70.5 | 71.5 | 71.5 | 72 | 72.5 |
| Seat tube angle (C) | 75.5 | 75 | 74.5 | 74 | 73.5 | 73 |
| Head tube length (D) | 100 | 110 | 135 | 155 | 172 | 190 |
| Chain stay length (E) | 420 | 420 | 425 | 425 | 425 | 425 |
| Front center (FC) | 590 | 600 | 607 | 620.5 | 628.5 | 636.5 |
| Wheel base (WB) | 991 | 1002 | 1014 | 1028 | 1036 | 1044 |
| Bottom bracket drop (BBD) | 85 | 85 | 85 | 85 | 85 | 85 |
| Bottom bracket height | 274 | 274 | 274 | 274 | 274 | 274 |
| Fork rake | 51 | 51 | 51 | 51 | 51 | 51 |
| Fork length (FL) | 370 | 370 | 370 | 370 | 370 | 370 |
| Stem length (SL) | 70-80 | 80-90 | 90-100 | 100-110 | 110-120 | 120-130 |
| Handlebar width | 380 | 380 | 400 | 420 | 420 | 420 |
| Crank length | 165 | 165 | 172.5 | 172.5 | 175 | 175 |
| Wheel size | 700 | 700 | 700 | 700 | 700 | 700 |
