A 590 g titanium fork combining incisive geometry (375 mm) and Tri-Process technology for absolute directional stability at high speeds, while filtering out the vibrations from the asphalt that carbon forks subjects you to.
The combination of surgical precision and high-frequency vibration damping.
Our titanium forks, like all our titanium components, are backed by a lifetime warranty.
Replacing your carbon fork with this titanium model transforms the dynamics of your titanium road bike. Optimized with a 375 mm length and a specific 45 mm rake, this fork locks in the head angle to offer imperial stability at high speed and razor-sharp trajectories in corners. Where a carbon road fork harshly transmits every imperfection of the asphalt, Grade 9 titanium filters out high-frequency vibrations, considerably delaying muscle fatigue over ultra-endurance distances.
Thanks to our Tri-Process manufacturing protocol, the lack of stiffness found in older titanium forks is eliminated. By combining 3D printing of high-stress zones, forging, and hydroforming, the structure experiences zero lateral flex during out-of-the-saddle accelerations or heavy braking. Boasting a contained weight of 590 g and naturally impervious to corrosion, this fork offers indestructible robustness. Once accustomed to this precise and smooth road feedback, switching back to a carbon fork will highlight an uncomfortable stiffness coupled with a feeling of structural fragility.
Key Features
Tri-Process: The combination of 3D printing, forging, and hydroforming to lock out lateral flex and guarantee optimal power transfer during accelerations.
Road Dynamics (375 mm / 45 mm Rake): A short axle-to-crown height and adjusted rake to shift mass forward, slice through the wind, and make steering incredibly precise.
Vibration Damping & Clearance: Designed for tires up to 700x32C, offering the perfect compromise between aerodynamic efficiency and shock absorption on broken asphalt.
Custom Configuration: Available with or without mounting eyelets for ultra-distance (dynamo) or purely sporty builds, featuring a choice of internal or semi-internal cable routing.
Custom Finish: All our titanium forks can be hand-anodized in our workshop to match your frame's colors.
Indestructible & Lifetime Warranty: Because titanium suffers neither the corrosion nor the mechanical fatigue of carbon, this fork is guaranteed for life.
Validated Safety: Design certified to the EN 14781 European safety standard.
Compatibility
Initially developed for the CYKL SWIIFT, this fork seamlessly integrates with titanium road, all-road, or endurance frames equipped with modern standards:
1"½ – 1"⅛ tapered steerer
100x12 mm front thru-axle
Flat Mount braking standard
To maintain the geometric balance of your road bike, it is recommended to measure the axle-to-crown distance of your original fork before installation. A difference in length will alter the head angle and the handling of your cockpit. If you have any doubts regarding compatibility with your frame, contact our team.
Technical Specifications
Product Name
SWIIFT Titanium All-road Fork
Brand
CYKL
Field of Application
Road, All-road, Ultra-distance, Endurance
Material
Grade 9 Titanium Ti3Al-2.5V
Technology
Tri-Process (3D Printed, Forged, Hydroformed)
Axle-to-Crown Length
375 mm
Weight
Approx. 590 g ± 15 g
Max Tire Clearance
700x32C
Fork Rake (Offset)
45 mm
Thru-Axle
100x12 mm
Steerer Tube
Tapered 1"½ – 1"⅛
Crown Diameter
56 mm
Cable Routing
Internal or semi-internal
Mounting Eyelets
With or without eyelets (optional)
Dynamo Compatibility
Yes (on versions with eyelets)
Safety Standard
EN 14781
Finish
Brushed titanium (color anodization optional)
Warranty
Lifetime warranty
Scope of Delivery
Titanium fork, 100x12 mm thru-axle
Tri-Process Manufacturing

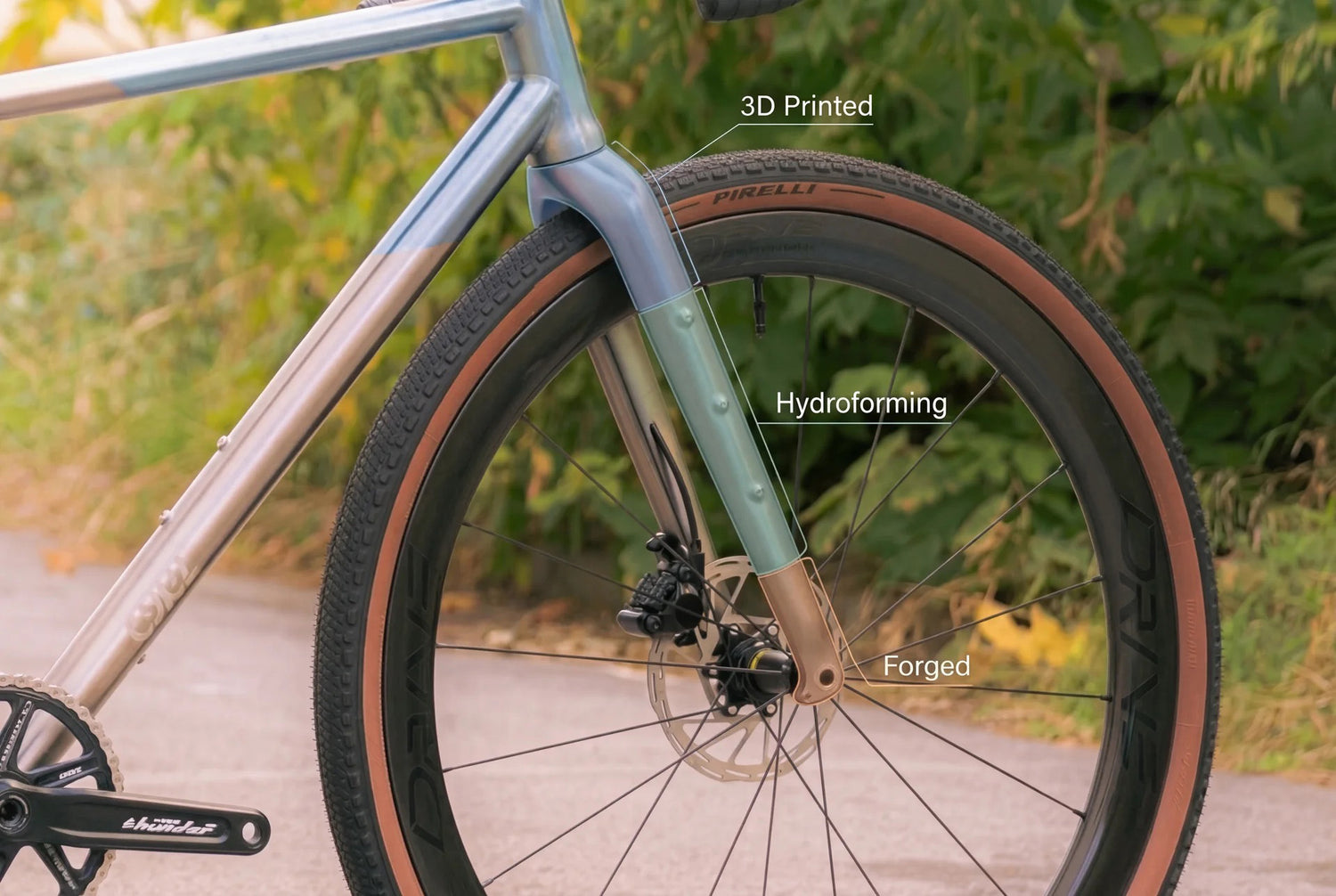

The Tri-Process architecture tailors the manufacturing method to the specific constraints of each zone: a 3D-printed crown for precise cable integration, hydroformed lowers to eliminate lateral flex, and forged dropouts for absolute strength under braking forces. The result: an unyielding front end, even under load.

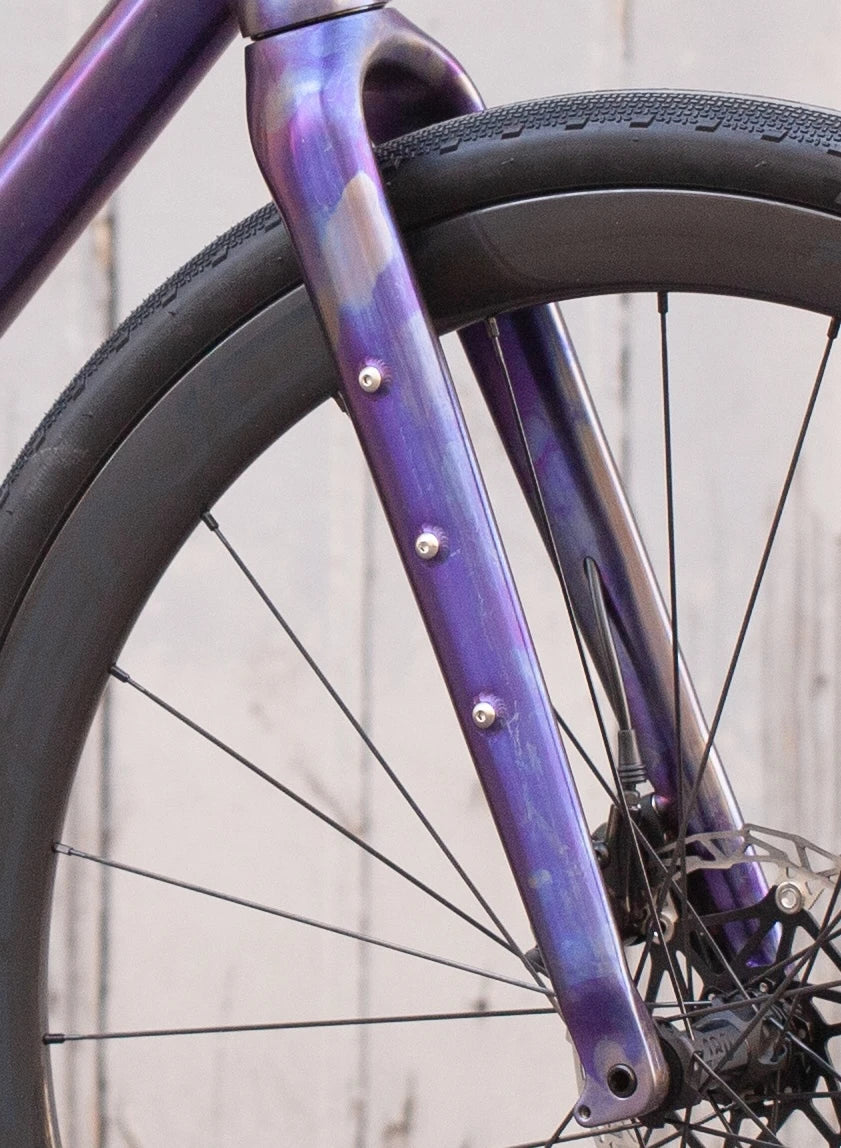

Custom Anodization
