GRAAVE

Built for trails only the deer know.

Load it for three weeks of bikepacking, charge through the brambles, and cross riverbeds without worrying about scratching the paint. The GRAAVE is the bikepacking gravel bike built to escape civilization—and it will never abandon you in the middle of nowhere.

Customise your GRAAVE

Buy a GRAAVE

A Grade 9 Titanium frame designed to absorb long-distance vibrations without compromising responsiveness under acceleration. Proven over the miles of the BikingMan, built to never fail its rider.

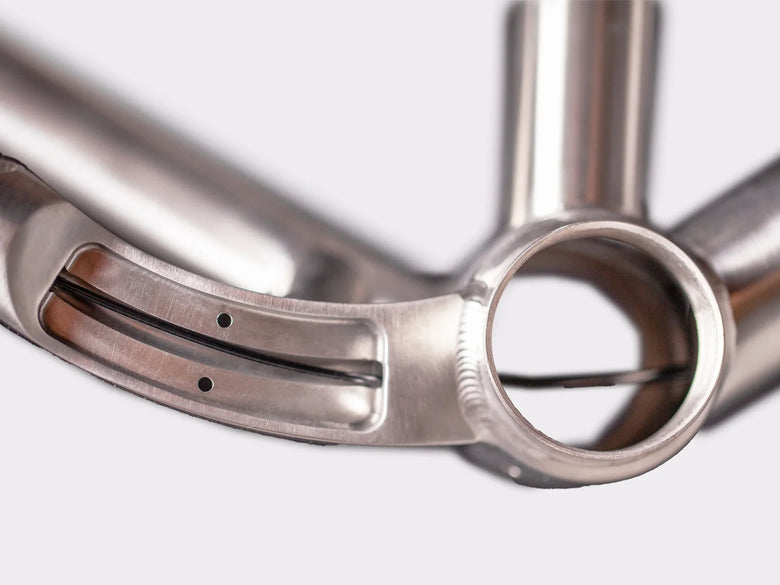

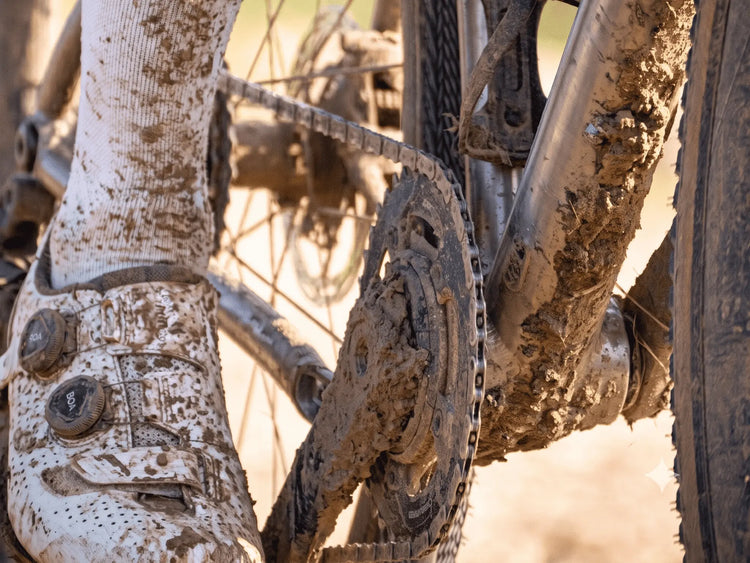

Tire clearance up to 700x55c. CNC-machined chainstays clear mud and debris effortlessly, keeping you moving regardless of trail conditions.
Choose a carbon fork for lightweight agility and responsiveness, or a titanium fork for maximum comfort and ultimate durability. Both options are available with or without cargo mounts.
Hydroforming the top tube allows precise control over the Grade 9 titanium’s shape and wall thickness based on stress zones. Lateral stiffness at the headtube junction is optimized, while adding an aerodynamic advantage.
The seatstays meet directly at the top tube, isolating the seatpost from trail chatter to enhance endurance comfort. Load distribution is shifted higher, reinforcing stiffness around the drivetrain. The rear triangle gains vertical compliance without sacrificing lateral stiffness during hard efforts.
Refined engineering details include a UDH derailleur hanger, a threaded T47 bottom bracket, and internal cable routing that allows easy cockpit adjustments. Spend more time riding, less time wrenching.

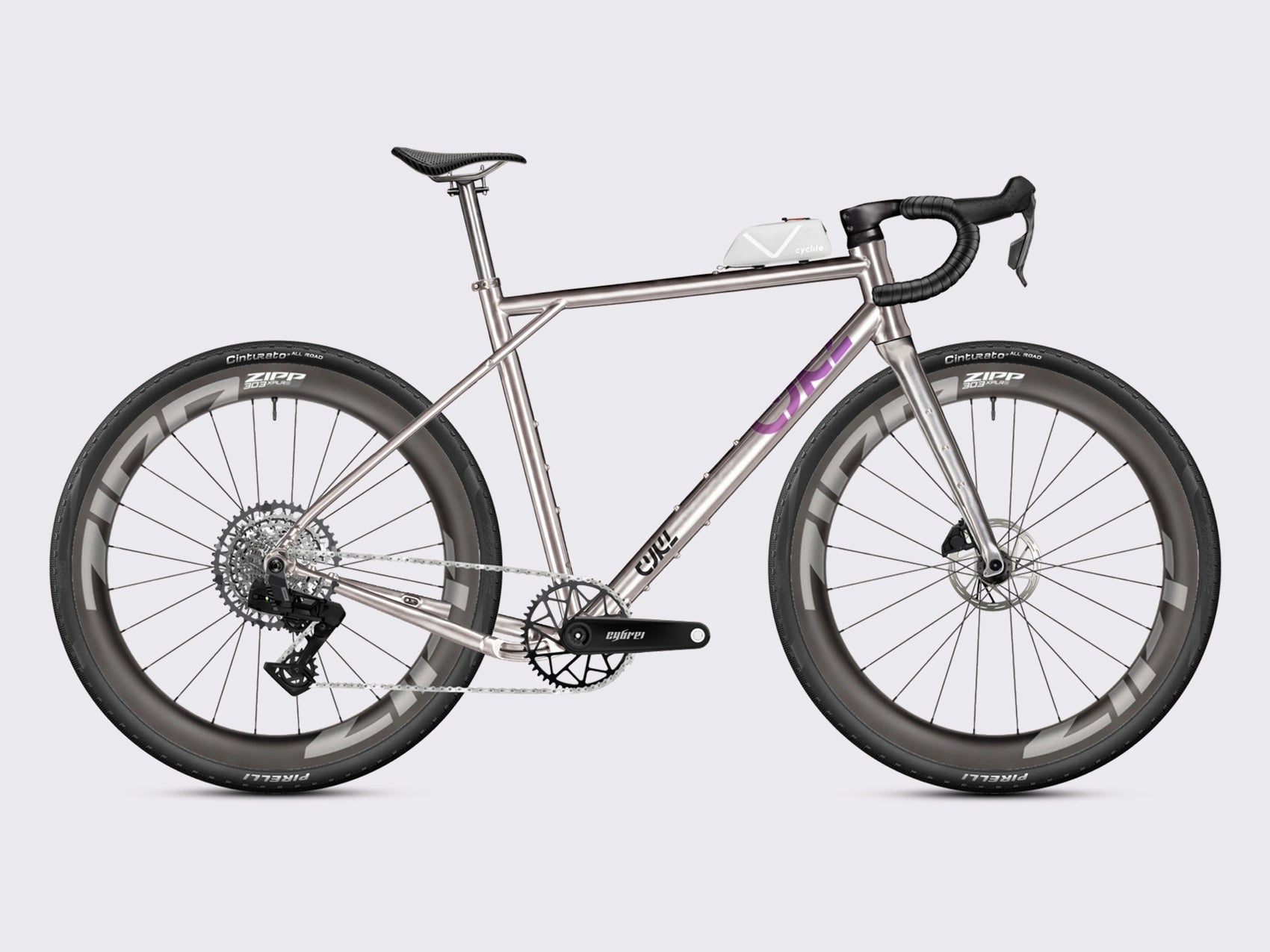

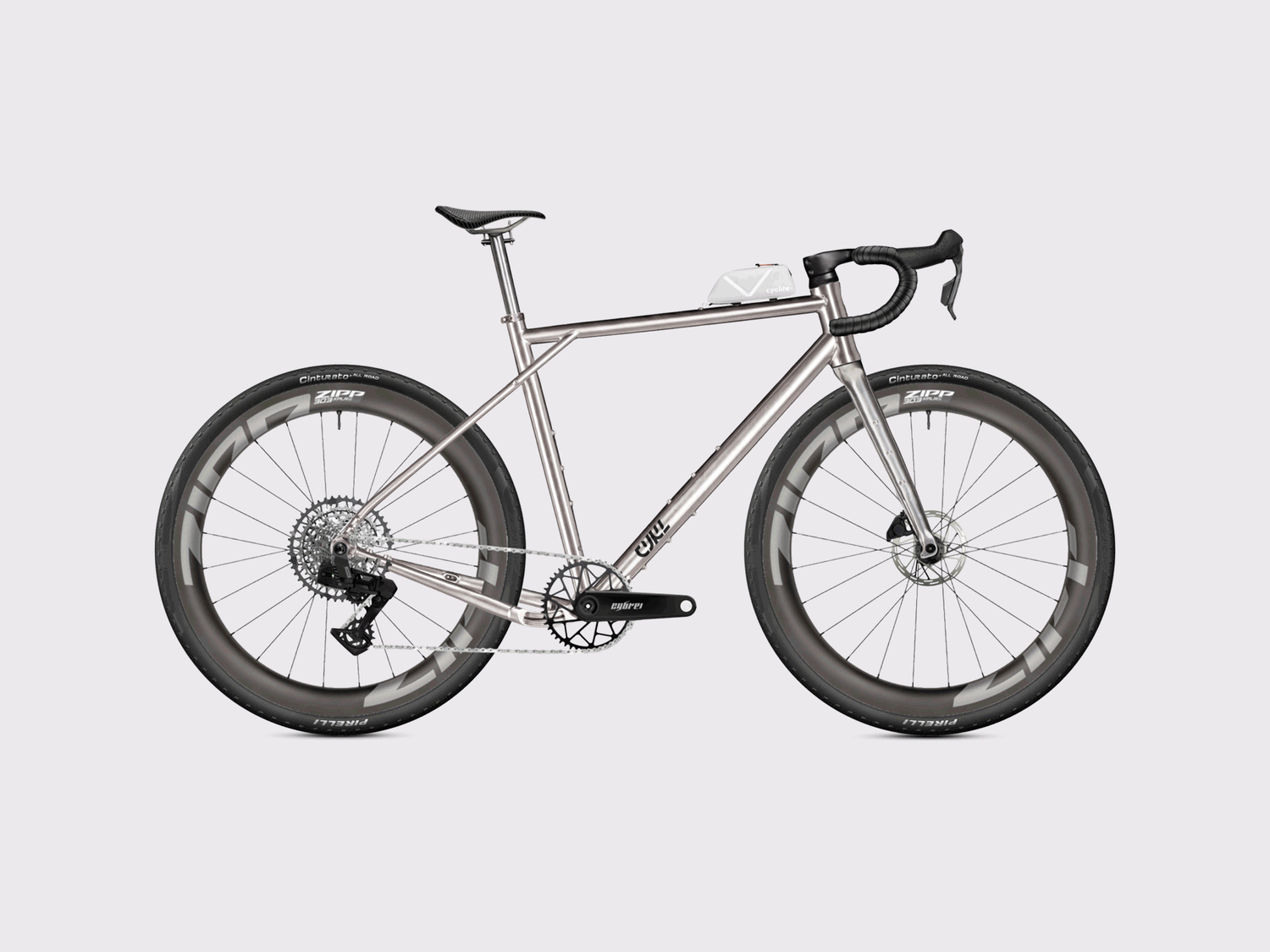

Configure every single detail

Everything is customizable: from frame color and component selection to fork choice. Configure your GRAAVE to match your technical requirements and riding style.

Customize

Assembled and customized in France

Every bike is meticulously assembled in our workshop in Montpellier, France. Send us your professional bike fit data: we will tailor the setup to your morphology for a perfect riding position.

All finishes are handcrafted in-house: titanium anodization, laser engraving, vinyl cutting, and more, ensuring a level of customization that only a manual build can achieve.

Don't have precise measurements yet? Carry out your bike fit assessment directly at our workshop with our partner, Studio Bike Fit.

Technical specs for nerds

UDH Derailleur Hanger
Internal Cable Routing
Tire Clearance up to 55mm

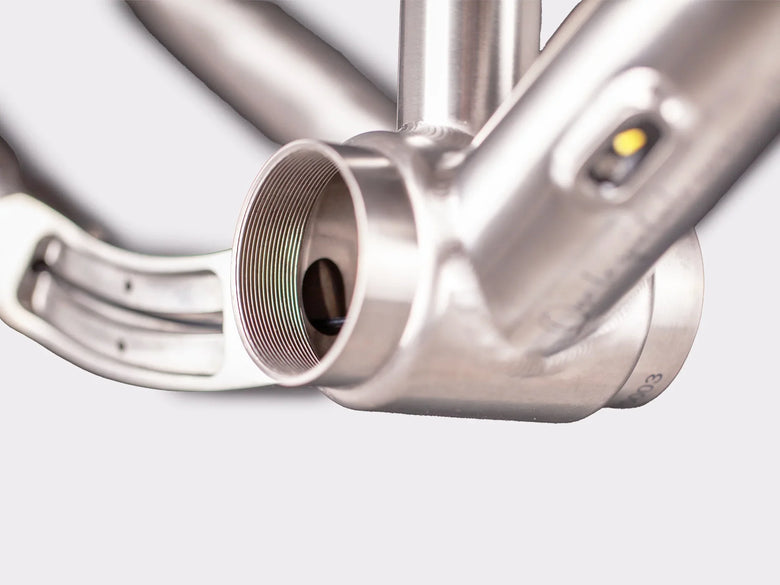

T47 Bottom Bracket
Monoblock CNC-machined Yoke
Integrated Headset
Hydroformed Tubing

GRAAVE

Geometry

Size guide

Rider height (cm)	XS	S	M	L	XL	XXL
Suggested range	<163	164–169	170–174	175–180	181–186	>186

À titre indicatif. Une étude posturale reste la référence.

Mesure (mm)	XS	S	M	L	XL	XXL
Stack (S)	536	541	580	604	623	643
Reach (R)	382	400	405	408	427	437
Ratio stack / reach	1,403	1,353	1,432	1,480	1,459	1,471
Seat tube length (A)	462	492	522	552	582	612
Top tube length (TTL)	521	545	555	569	595	611
Effective top tube (EFFTT)	541	562	574	587	612	627
Top tube slope (TTS)	11°	8°	9,3°	8°	10,2°	6°
Head tube angle (B)	71°	71°	72,5°	72,5°	72,5°	72,5°
Seat tube angle (C)	73,5°	73,5°	73,5°	73,5°	73,5°	73,5°
Head tube length (D)	120	125	145	170	190	210
Chain stay length (E)	425	425	432	432	432	432
Front center (FC)	602	623	618	632	657	672,2
Wheel base (WB)	1019	1041	1039	1053	1078	1093
BB drop (BBD)	60	75	75	75	75	75
BB height	321	286	286	286	286	286
Fork rake	50	50	50	50	50	50
Fork length (FL)	410	410	410	410	410	410
Stem length (SL)	60	70	70	80	90	90
Handlebar width	400	420	420	420	420	440
Crank length	165	165	170	170	175	175
Wheel size	700	700	700	700	700	700

Frame Material & Finishes

Grade 9 Titanium (Ti-3Al-2.5V) Standard finish: Raw brushed titanium. Anodization available via our configurator or custom order (contact@cykl.store). Designed, assembled, and customized in Montpellier, France.

Weight

Frame: 1650g | Titanium Fork: 690g | Carbon Fork: 450g

Maximum System Weight

135 kg / 297 lbs (Rider and luggage) ISO 4210 standards

Available Sizes

XS / S / M / L / XL / XXL

Fork Specifications

Axle-to-Crown 410 mm | Rake 50 mm | Tapered Steerer (1-⅛" to 1-½") 100x12 mm thru-axle. Max tire clearance 700x55c.

Drivetrain & Chainrings

Single chainring (1x): max 52T | Double chainring (2x): max 54T

Bottom Bracket

T47 Internal Threaded 68 mm

Seatpost

Round 27.2 mm Compatible with a wide range of brands and models, including dropper and suspension seatposts.

Derailleur Hanger

UDH Standard (Universal Derailleur Hanger)

Thru-Axles

Front: 100x12mm | Rear: 142x12mm

Headset

Integrated

Tire Clearance

Up to 700x55c

Warranty

Lifetime (Titanium frame and titanium components) | 2 years (Carbon fork and carbon components)

Frameset Includes

GRAAVE Chroma

Un GRAAVE pour le moins unique, autant par son esthétique que par son usage. Ce vélo se positionne comme un « Allroad » de bikepacking.

SWIIFT EOS

Ce vélo destiné aux routes exigeantes de l'arrière-pays niçois pour un client triathlète, ce montage associe le confort de filtration d'un cadre en titane à une configuration sans concession.

View all

Start form €3000
