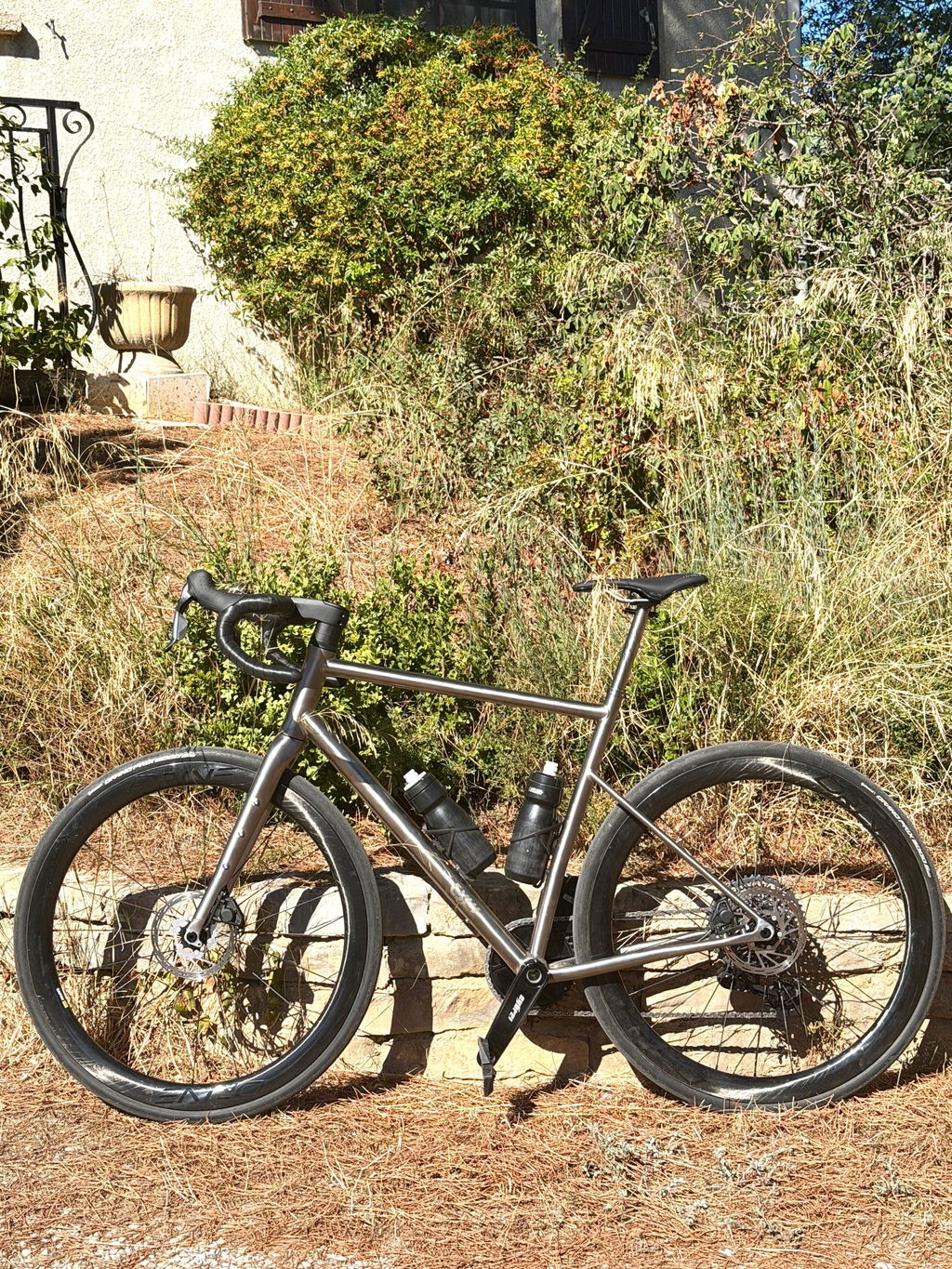

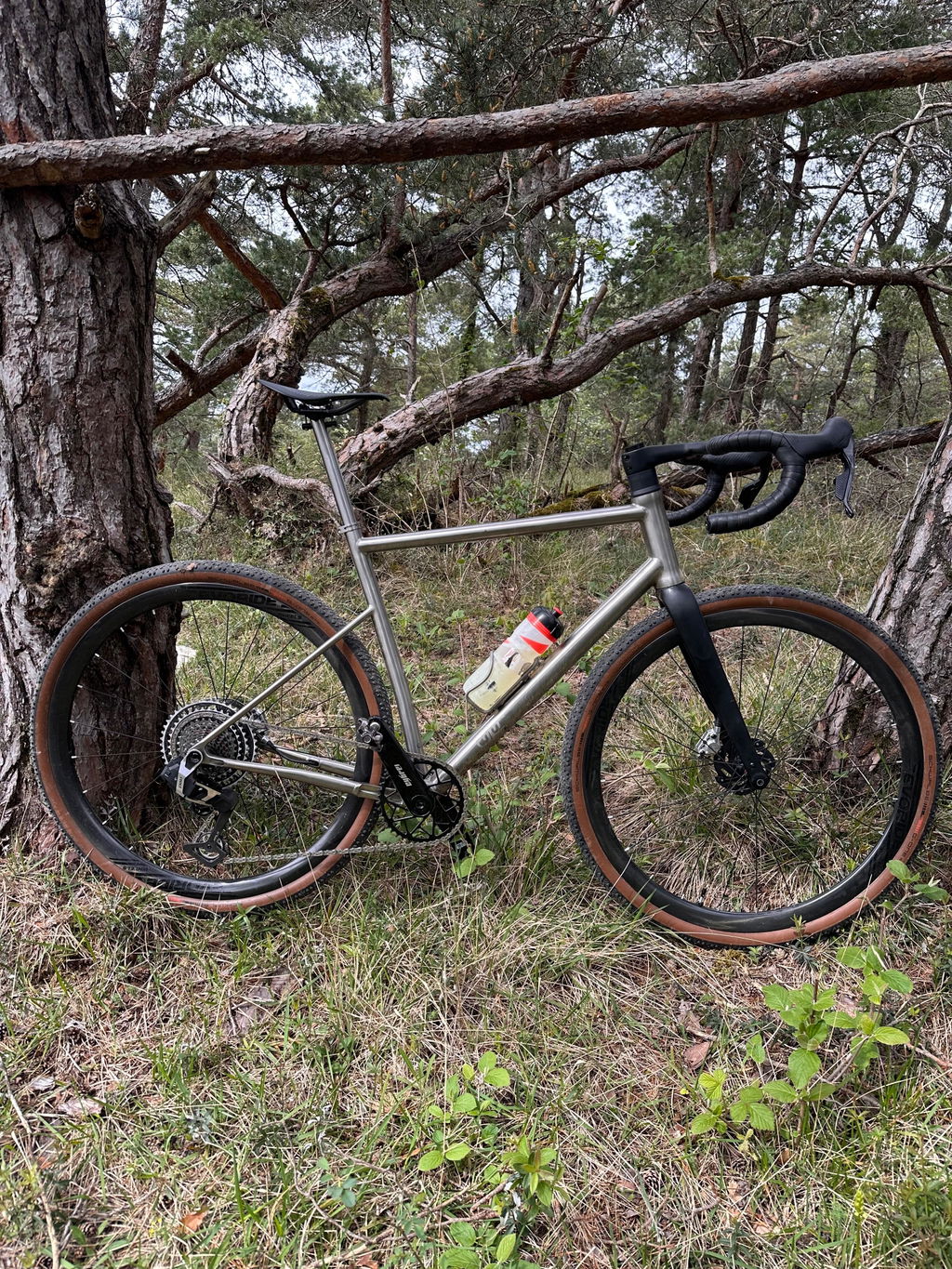

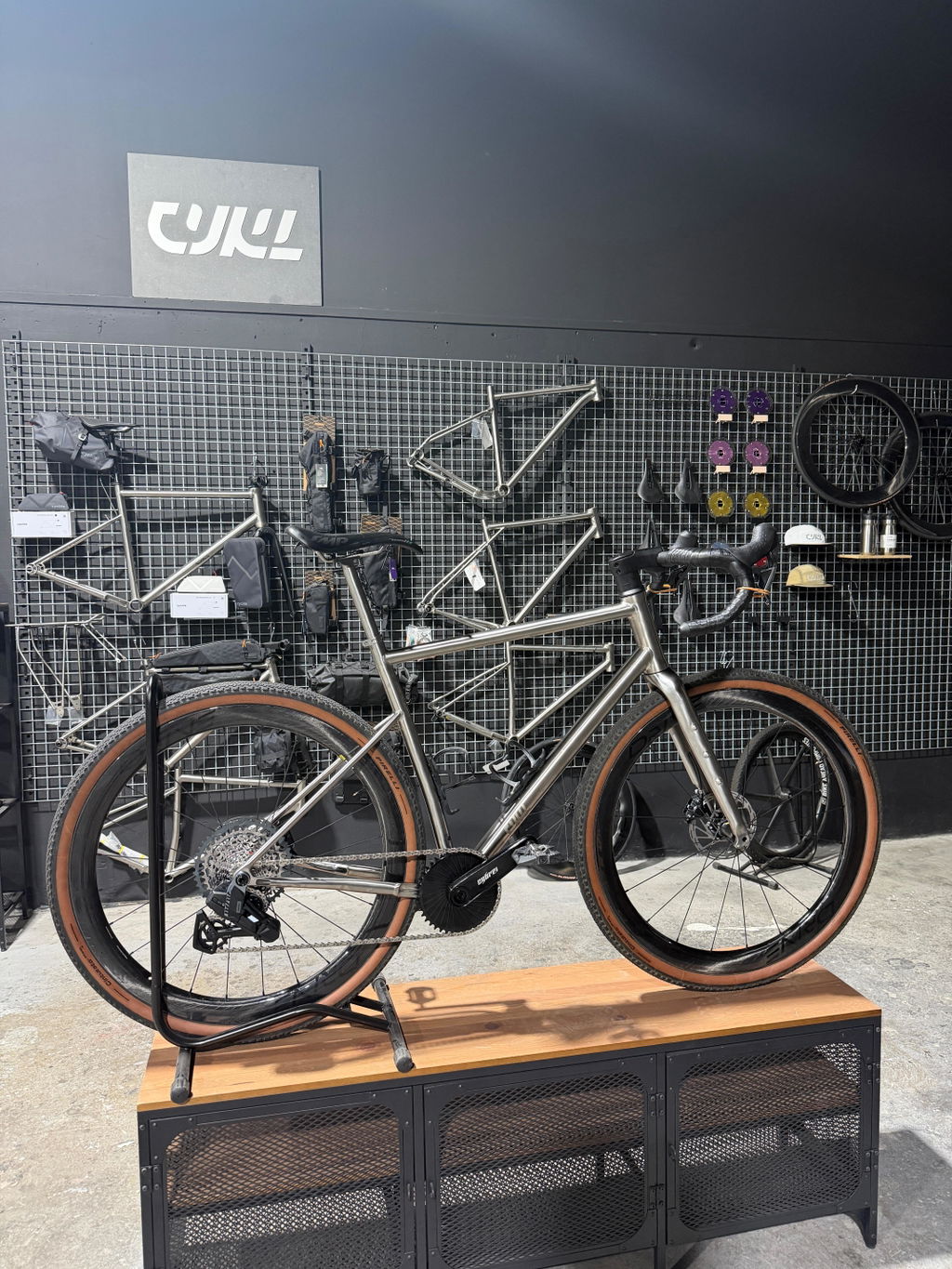

CYKL RAAVE Titanium Gravel Frameset - Titanium Fork

This "Full Titanium" version of the RAAVE is a marvel: it marries the offensive geometry and stiff chainstays of a race bike with the organic damping of a titanium fork. It is the choice of ultra-cyclists seeking the RAAVE's efficiency but wanting absolute reliability and superior filtration for long-haul events. The secret weapon? The titanium fork is stiffer than the carbon fork, offering more precise braking. A formidable advantage in racing.

The rear triangle with 3D-printed chainstays ensures power transfer, while the titanium fork brings a steering "smoothness" that carbon cannot equal. The result is a responsive, indestructible bike, capable of crossing continents without fearing impacts during transport.

Key Points

• The best of both worlds: The lateral stiffness of the "Race" rear triangle (3D Chainstays) combined with the vertical compliance of the titanium front end.
• Organic damping: The titanium fork dissipates high-frequency vibrations far better than a rigid carbon fork, reducing arm fatigue over extreme distances.
• Total durability: A setup immune to scratches, stone impacts, and travel stresses (plane, train, loading).
• Race Geometry: We retain the RAAVE's aggressive Stack/Reach ratio for an aerodynamic position, even if the overall behavior is slightly softened by the fork.
• Aesthetic coherence: The timeless elegance of brushed titanium from end to end.

Compatibility

The RAAVE maintains its high-performance standards: T47 bottom bracket (68mm) for stiffness, UDH hanger for total compatibility (SRAM Transmission T-Type, Shimano GRX, etc.), and Flat Mount braking. Cable routing is fully internal.

Technical Specs

References and Identifiers

Geometry

Size guide

Rider height (cm)	XS	S	M	L	XL	XXL
Suggested range	<160	161–166	167–172	173–179	179–188	>190

Indicative. A bike fit remains the benchmark.

Mesure (mm)	XS	S	M	L	XL	XXL
Saddle height	653–753	683–783	713–813	743–843	773–873	803–903
Stack (S)	519	528	556	575	592	612
Reach (R)	370	377	384	391	398	405
Ratio stack / reach	1,403	1,401	1,448	1,471	1,487	1,511
Seat tube length (A)	450	480	500	520	540	560
Effective top tube (EFFTT)	509	523,6	543	561	579	592
Top tube length (TTL)	493	508	524	540	553	573
Top tube slope (TTS)	11,6°	8,8°	9,2°	10°	9,3°	8,9°
Head tube angle (B)	70°	70°	71°	71°	71,5°	72°
Seat tube angle (C)	74,5°	74,5°	74°	73,5°	73°	73°
Head tube length (D)	100	110	135	155	172	195,8
Chain stay length (E)	420	420	425	425	425	425
Front center (FC)	588	587,3	607	620	628	636
Wheel base (WB)	995	994	1018	1032	1039	1050
BB drop (BBD)	80	80	80	80	75	75
BB height	276	276	276	276	281	281
Fork rake	50	50	50	50	50	50
Fork length (FL)	385	385	385	385	385	385
Stem length (SL)	60–70	70–80	80–90	90–100	100–110	110–120
Handlebar width	380	400	400	420	420	440
Crank length	165	165	170	170	175	175
Wheel size	700	700	700	700	700	700
