RITCHEY WCS Venture Max aluminium handlebar

Ritchey WCS VentureMax Alloy Handlebar

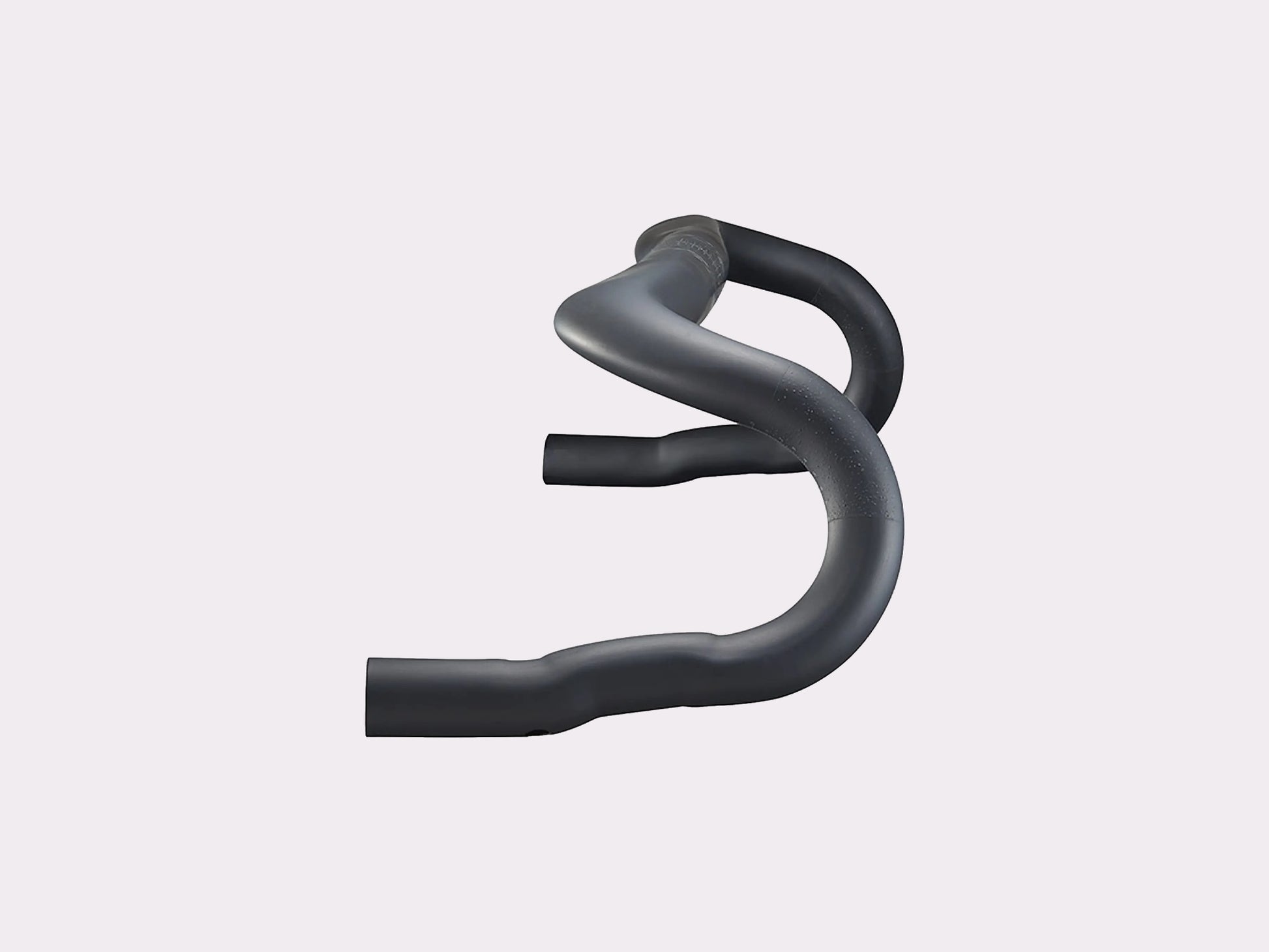

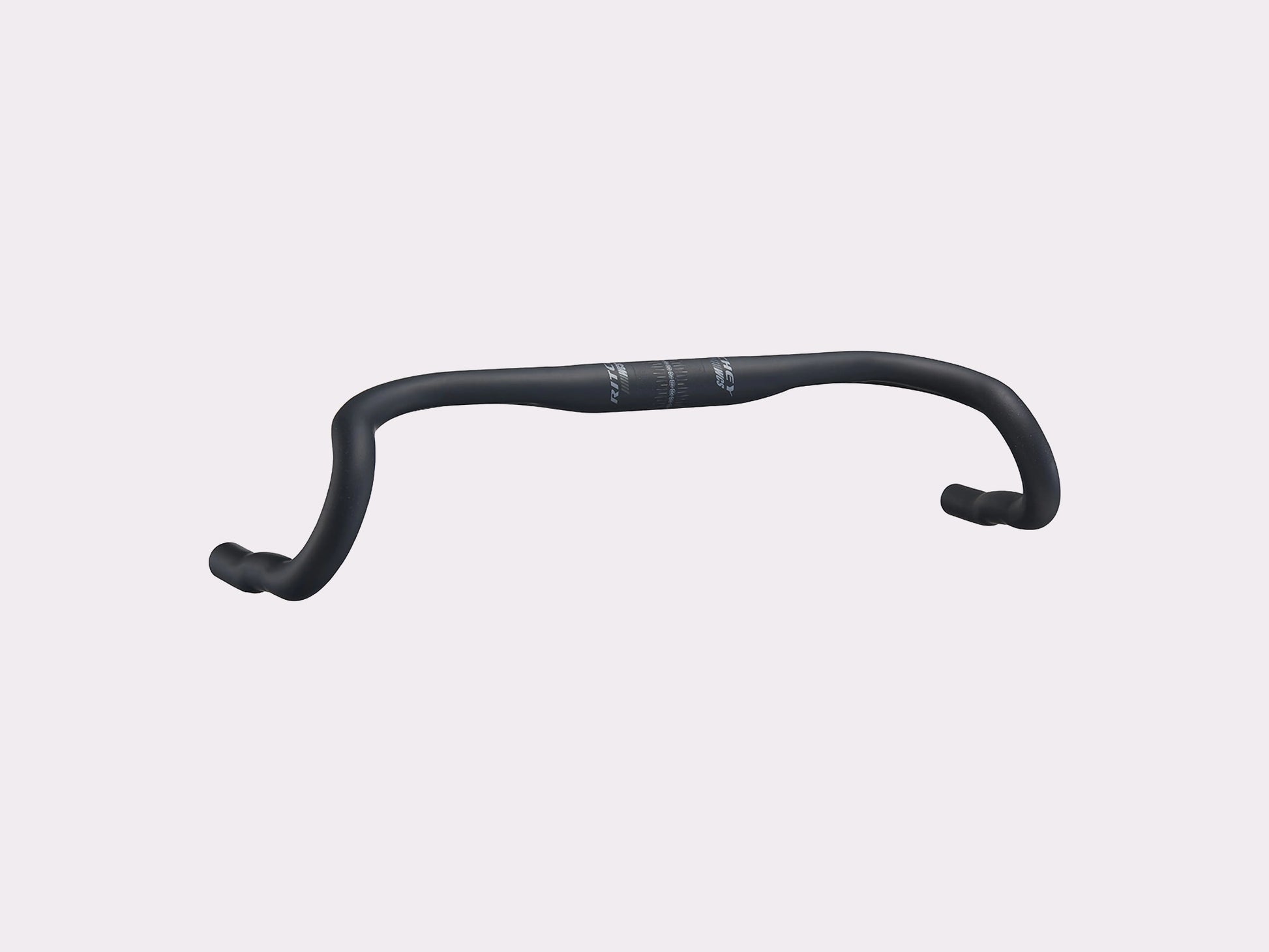

The Ritchey WCS VentureMax is engineered from triple-butted 7050 alloy to meet the structural demands of mixed-terrain riding. Its compact geometry, featuring a short 75mm reach and a 102mm drop, maintains a neutral body position over long distances. The pronounced 24° flare widens the stance in the drops, ensuring mechanical stability during technical descents.

The design incorporates flattened 38 x 22.5 mm tops, maximizing the contact surface to reduce palmar pressure when riding on the tops.

Key Features

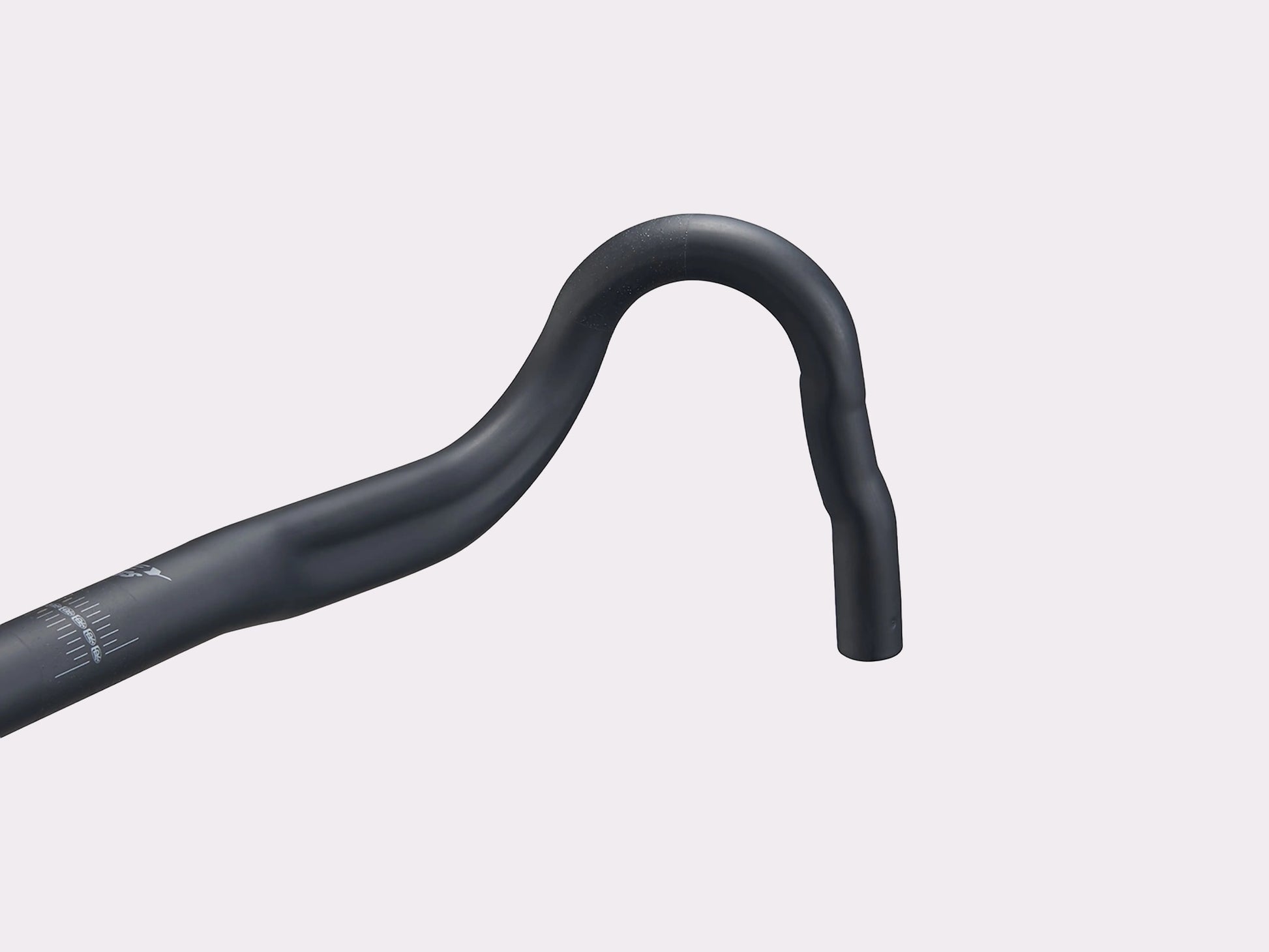

Bio-bend profile in the drops allows for a natural hand lock-in position, eliminating specific pressure points during sustained descending.

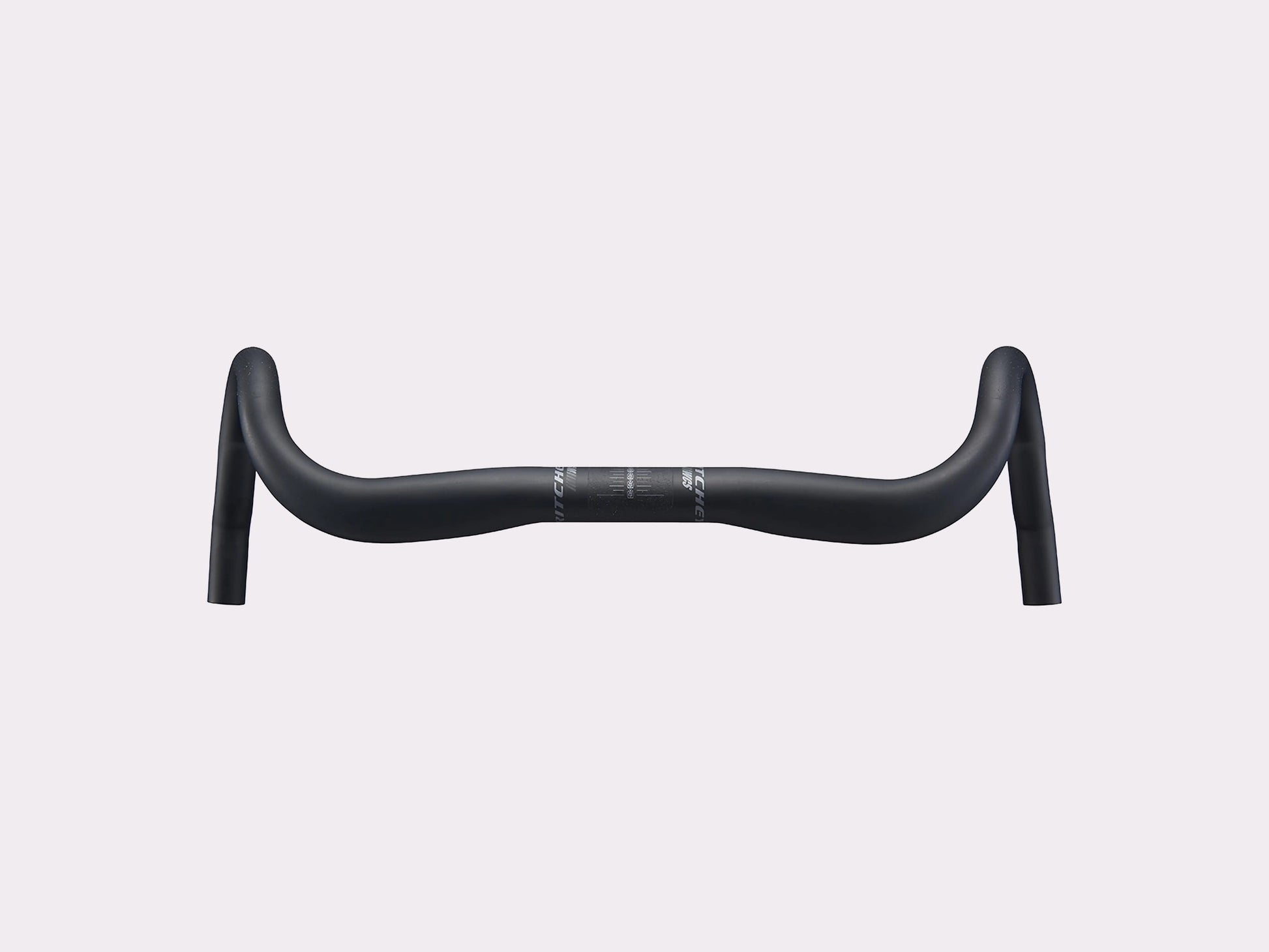

Ergo-aero top section combined with a 4.6° backsweep to align wrist angles for optimal comfort on flat cruising sections.

Additional 6° flare-out at the bar ends, optimizing ergonomics and clearance when reaching for the brake levers.

Bar-end drilling validated for internal cable routing and seamless integration of the Shimano Di2 EW-RS910 junction box.

Compatibility

The 31.8mm central clamping diameter ensures compatibility with the majority of stems on the market. Note: this handlebar is not compatible with the Ritchey C260 stem. Clip-on aerobars can be safely mounted on all widths, with the strict exception of the 38cm version.

Use of a torque wrench is mandatory during lever and stem installation to preserve the integrity of the triple-butted alloy structure. Need advice on sizing based on your shoulder width? Contact us.

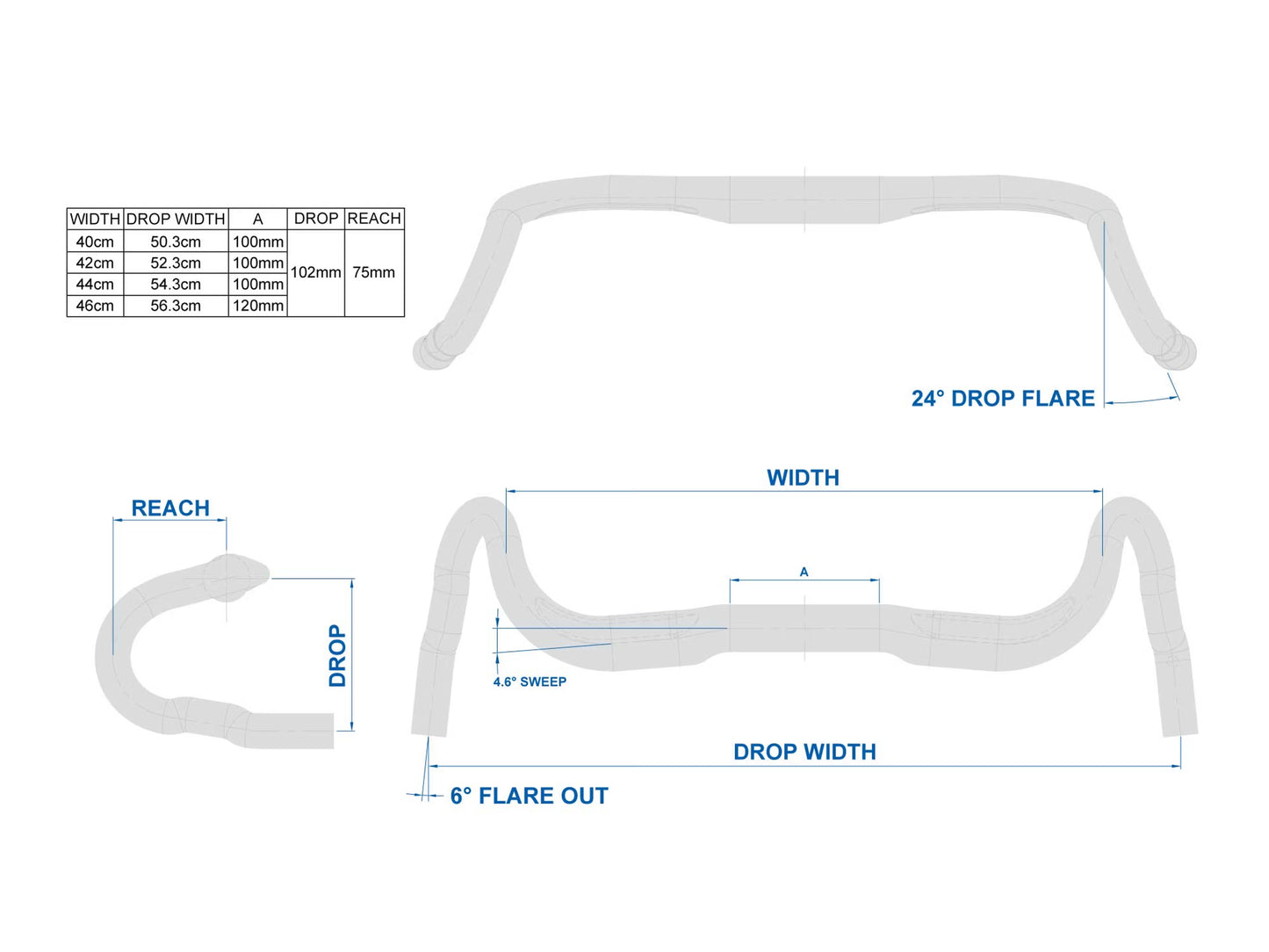

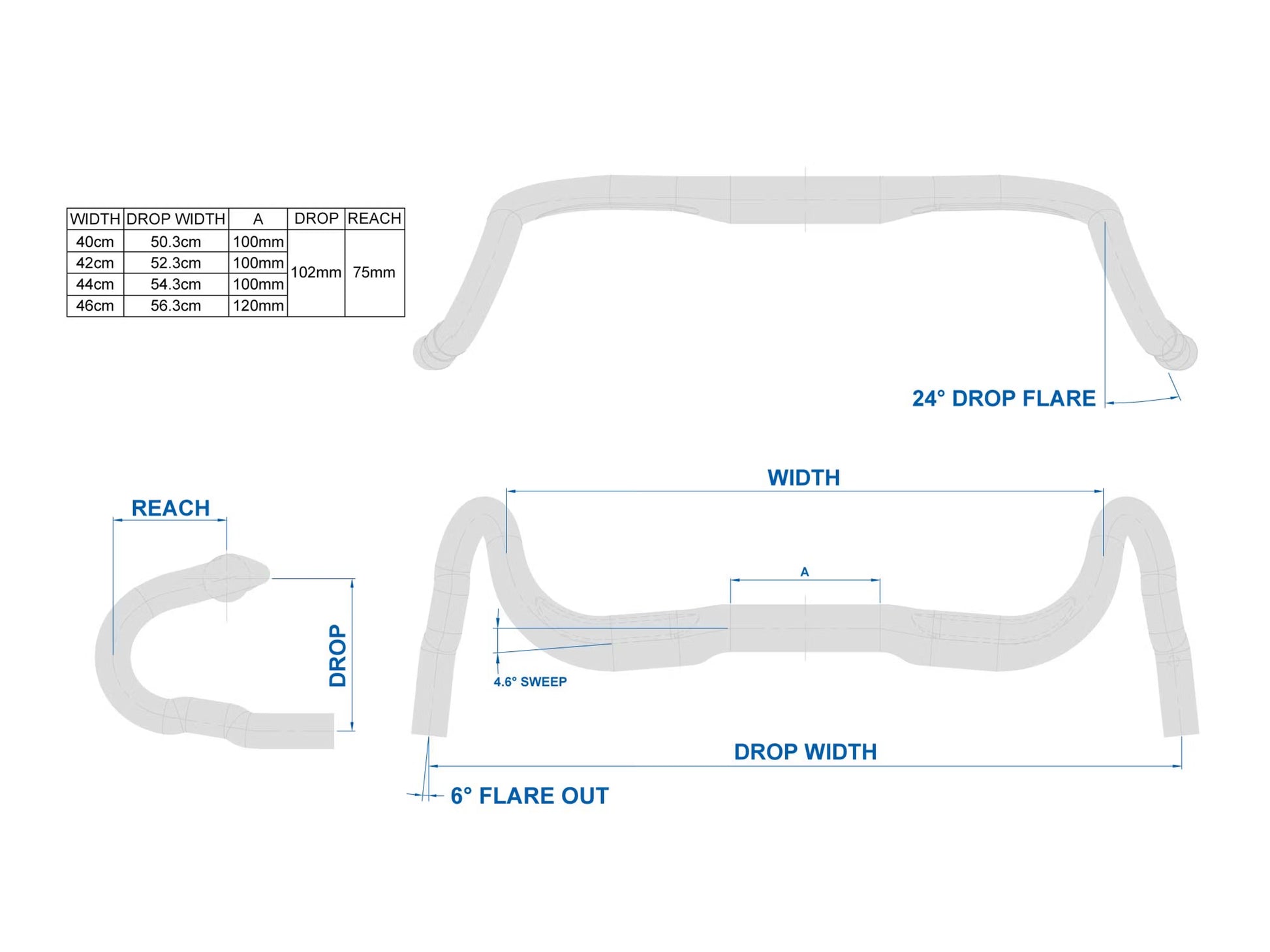

Technical Specifications
