Elitewheels Pro36 MTB Wheels

ELITE PRO-36 Wheelset

The Pro-36 carbon wheels are similar to their predecessor, the Pro-33, but with a wider rim to accommodate larger tires. They are designed for trail, all-mountain, and enduro mountain biking. Featuring a modern rim shape with a 30mm internal width, they are paired with the high-precision Elitewheels Pro hubs to deliver exceptional performance on the most demanding terrain.

Features

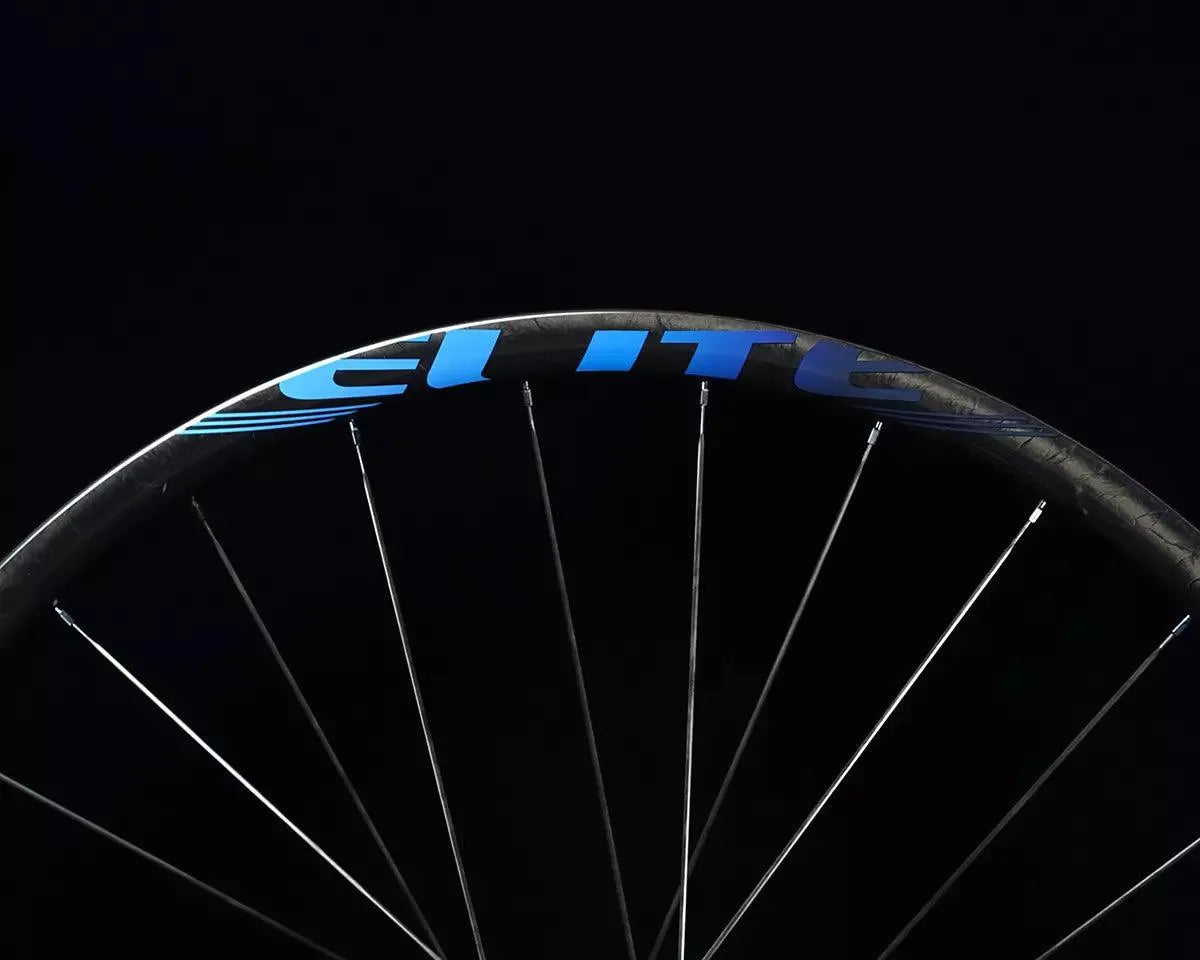

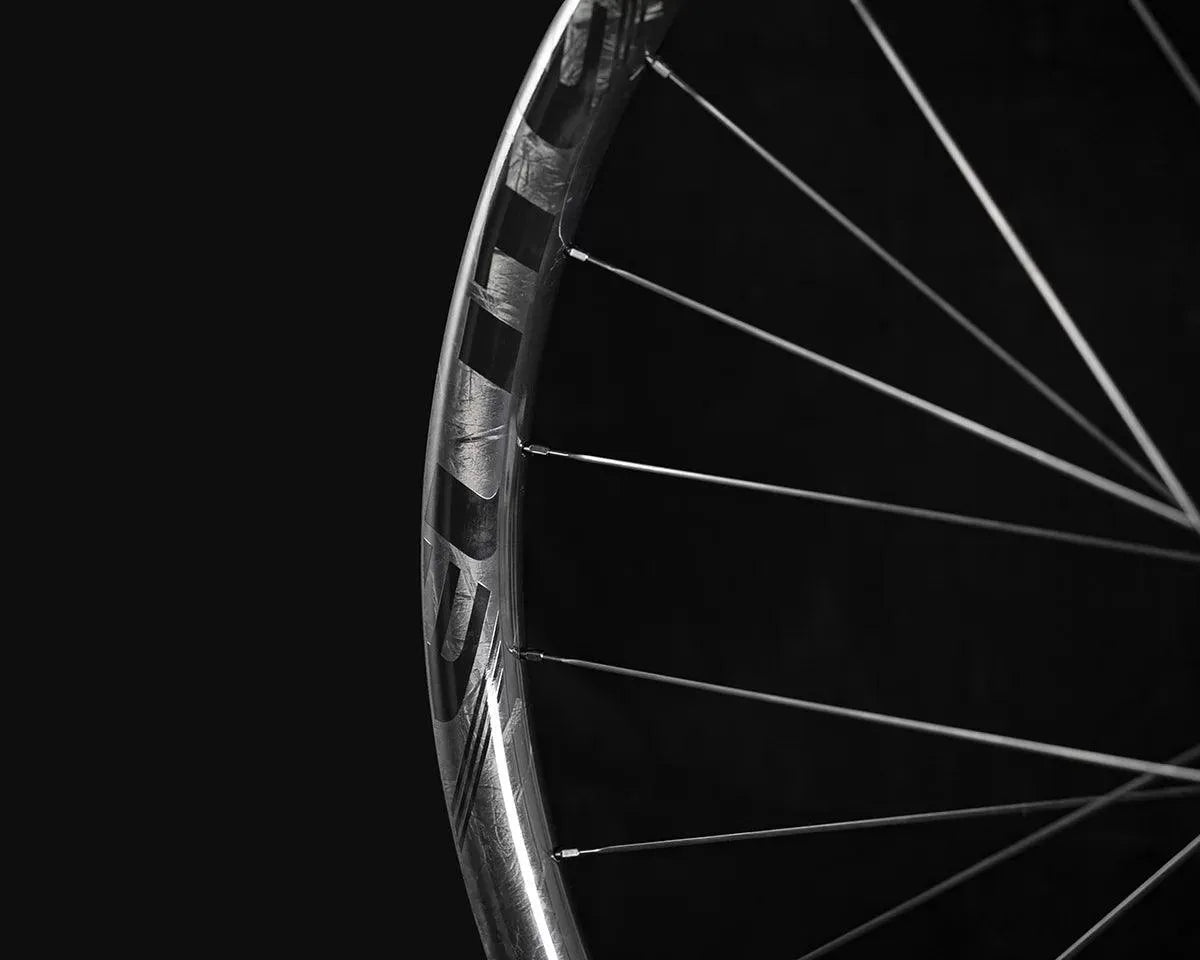

The rim

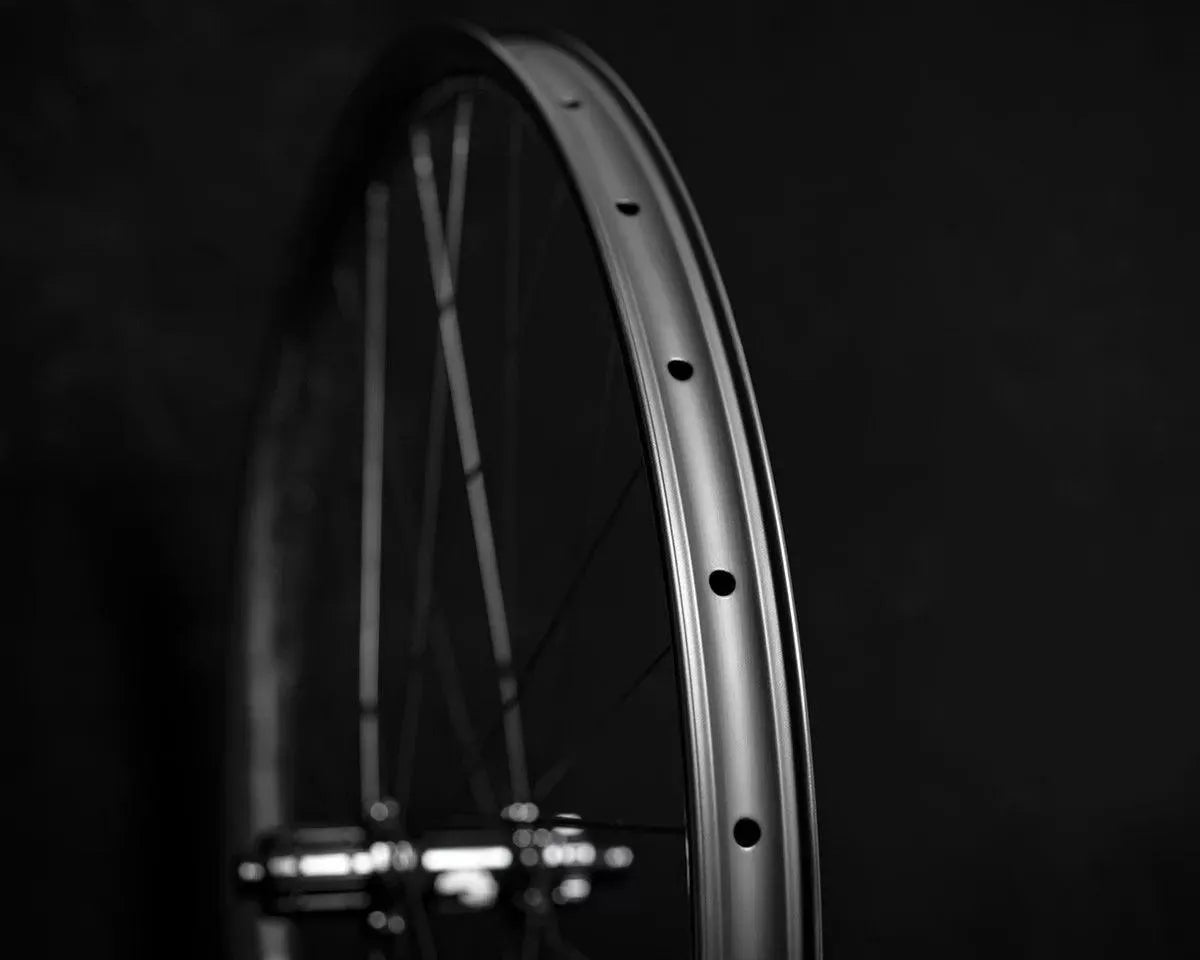

During the rim production process, inflatable internal bladders made of a special material are used to create smoother walls, resulting in a lighter rim. These bladders are then completely removed without the use of harsh chemicals through the valve hole. The unique manufacturing process ensures that the rim does not need to be repaired to remove the bladders, as is the case with traditional manufacturers. This significantly improves the rim's strength.

ELITE uses both genuine Toray T700 and T800 carbon fiber, which is superior to the generic carbon fiber used by many manufacturers. Both types of carbon fiber are used in different locations to increase the wheel's strength-to-weight ratio while reducing lateral and radial forces, and increasing impact resistance.

The rims have also been specifically designed to facilitate the fitting of tubeless tires using a floor pump.

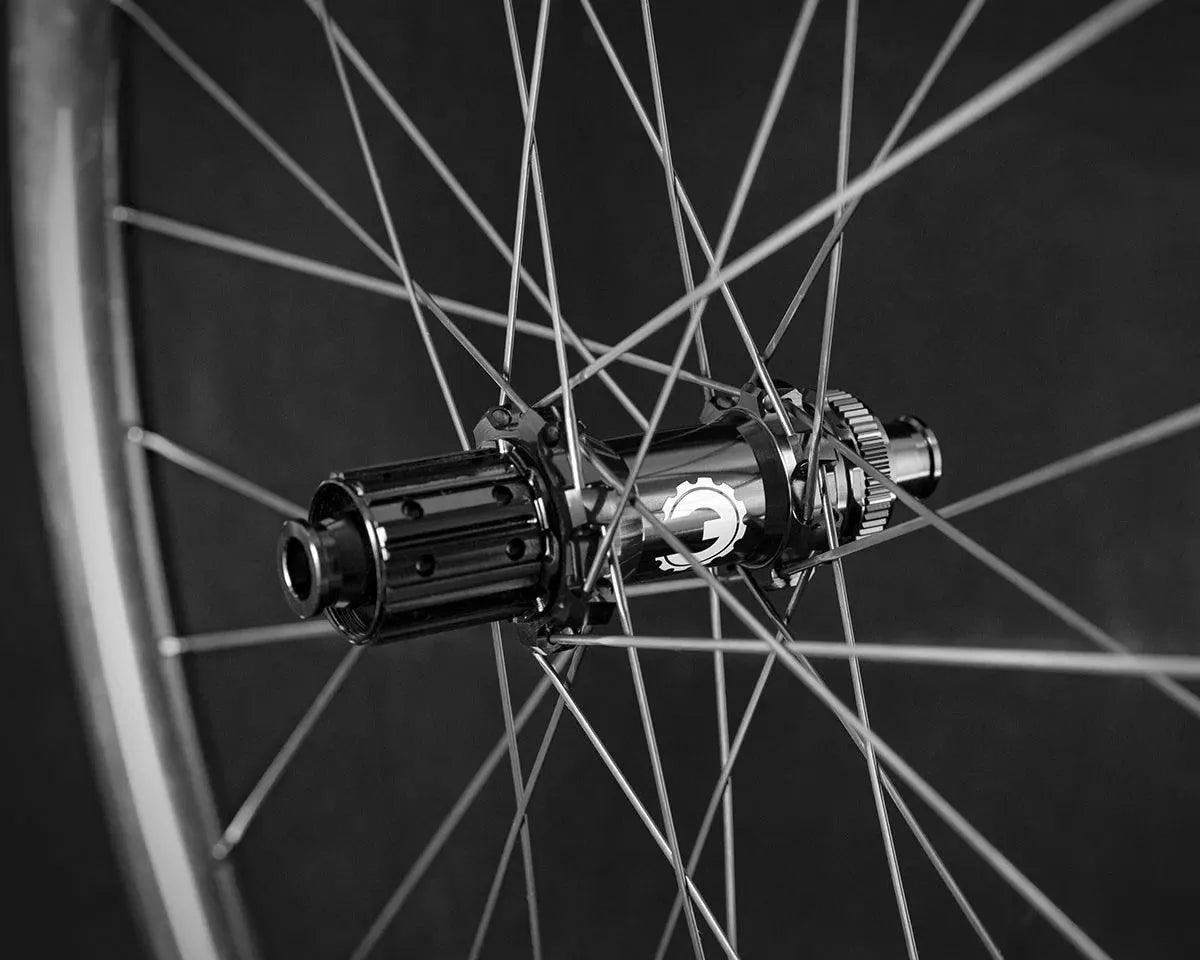

The hubs

The Elitewheels Pro hub is included as standard and is equipped with Taiwanese TPI bearings. The front and rear hubs are made of 7075 aluminum alloy. The lightweight freewheel features a 36-tooth hook system.

The rays

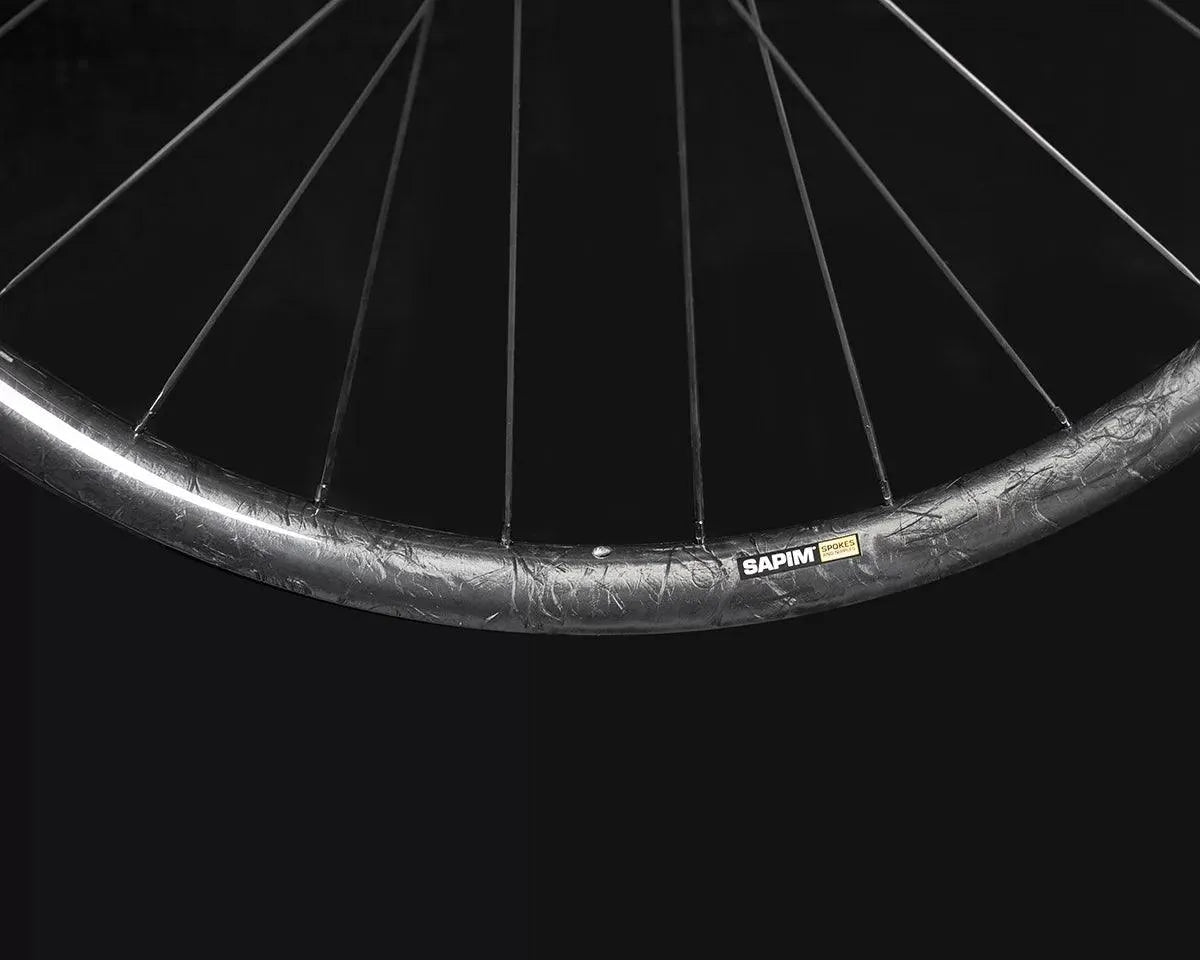

Sapim CX-Ray spokes are standard. ELITE takes special care to minimize spoke twist so the wheels don't become misaligned. After the initial adjustment, the wheel is subjected to a side load. This process is repeated several times. The wheels undergo a total of 16 side loads, which is considered an essential quality control standard. As a result, our wheels are guaranteed to remain within a tolerance of 0.2 mm.

The 3.2mm spoke offset minimizes the difference in spoke tension between the right and left spokes. This creates a stronger and laterally stiffer wheel, giving you better control.

More information on the ELITE PRO 36 website

Technical characteristics

• Wheel diameter 29" (622 mm)
• Rim dimensions: width 36 mm, inside 30 mm, height 24 mm.
• Compatible with inner tubes and tubeless
• Number of spokes 28 front/rear
• Hub dimensions 110/15 mm front and 148/12 mm rear
• Standard centerlock or 6 bolt disc
• UCI certified
• Freewheel type: 36T ratchet

Color

• Black

Weight

• 1,486 g ±30 g

Materials

• Rim: carbon
• Spokes: Sapim CX-Ray
• High-strength 7075 T6 aluminum hubs
• TPI Bearings

Scope of delivery

• Pair of wheels.
• Freewheel body

UPC & EAN

• ELITE-PRO36
