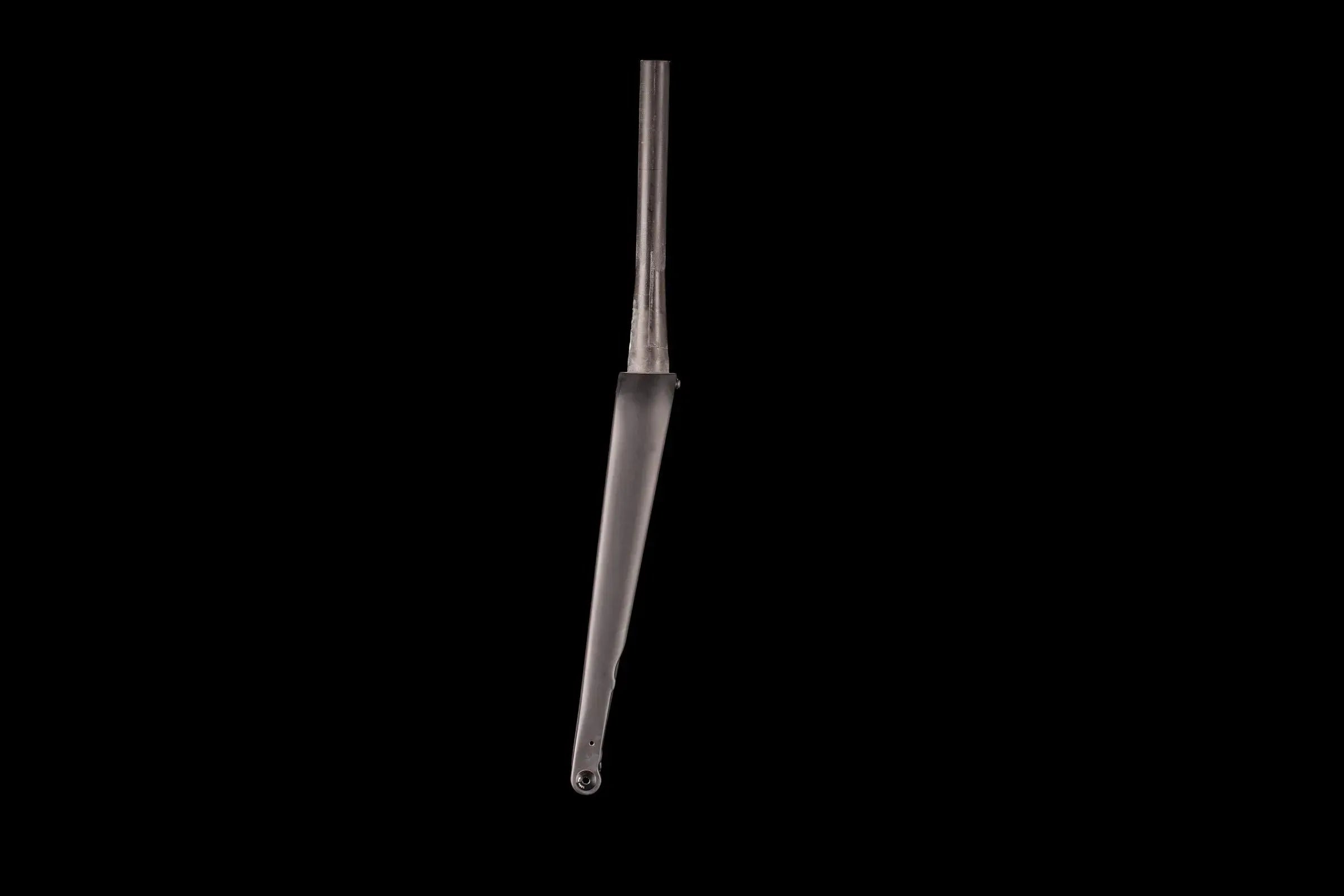

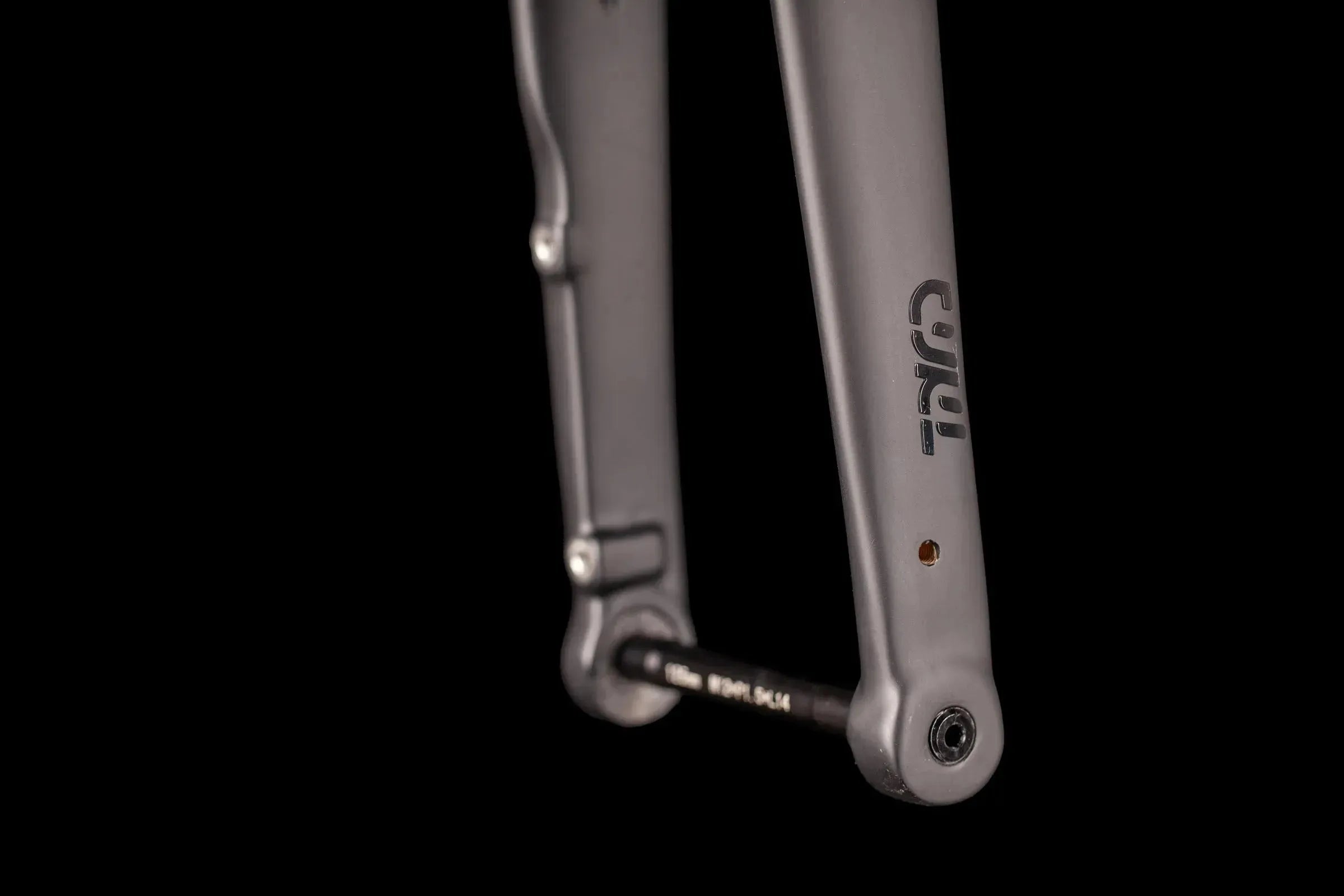

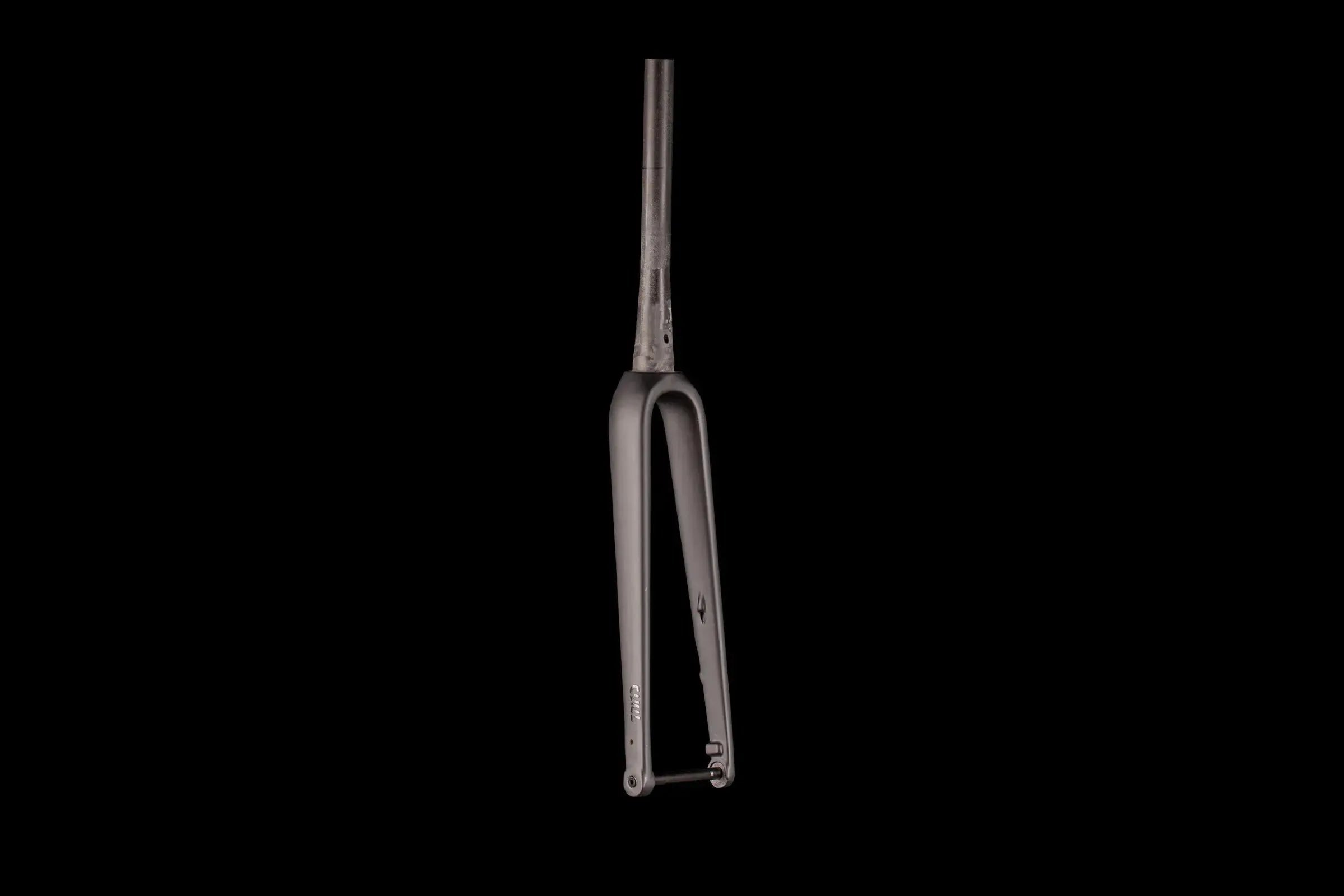

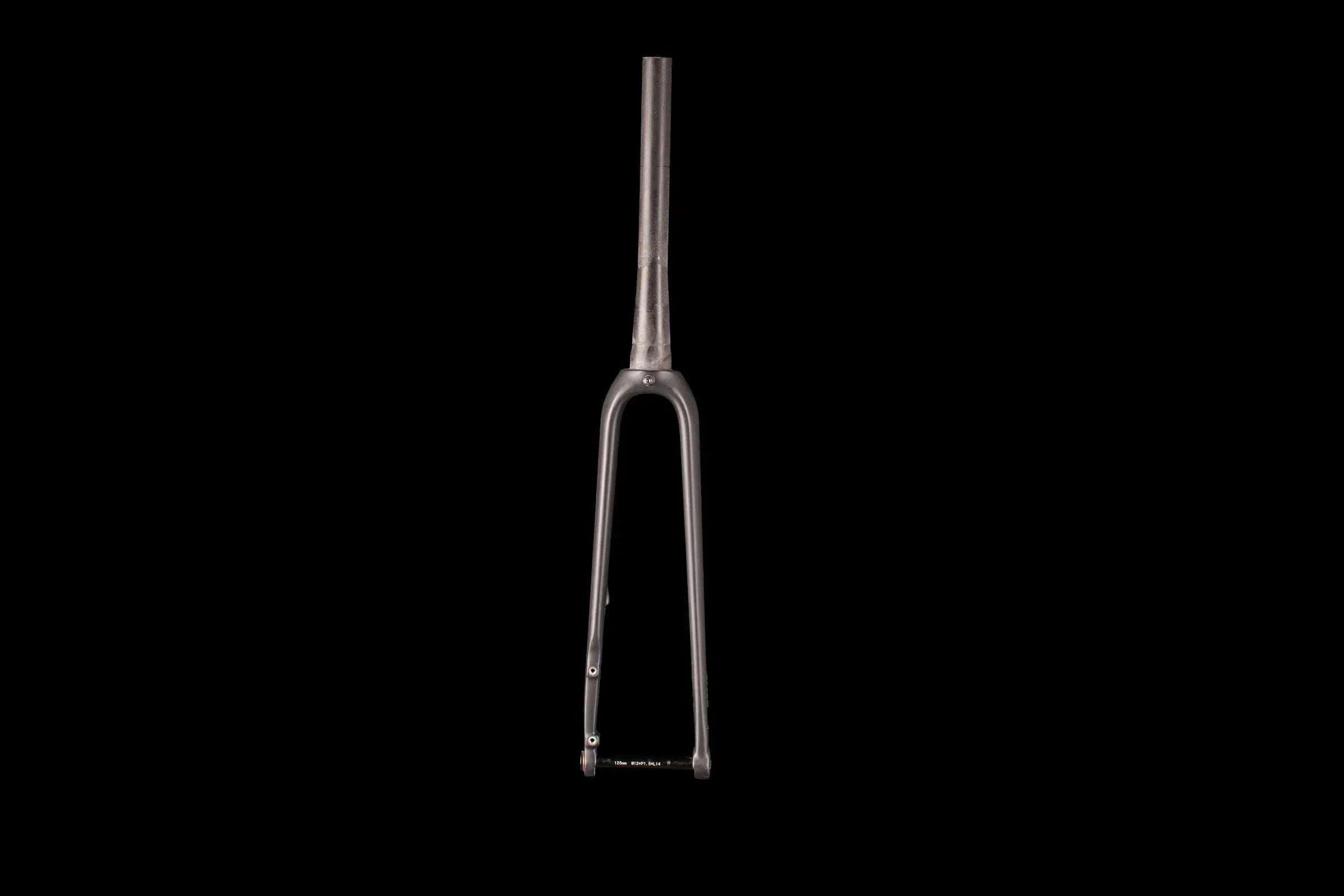

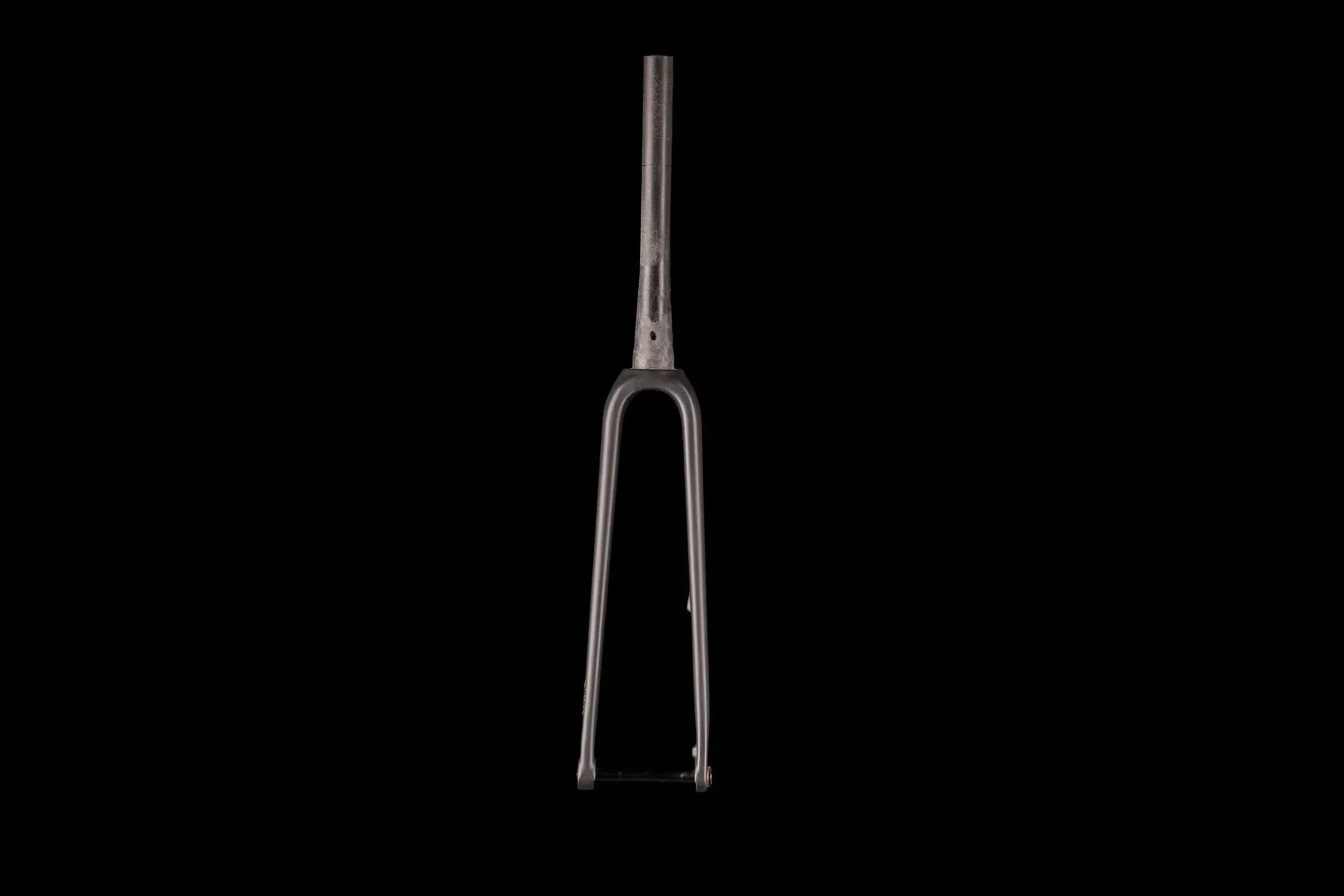

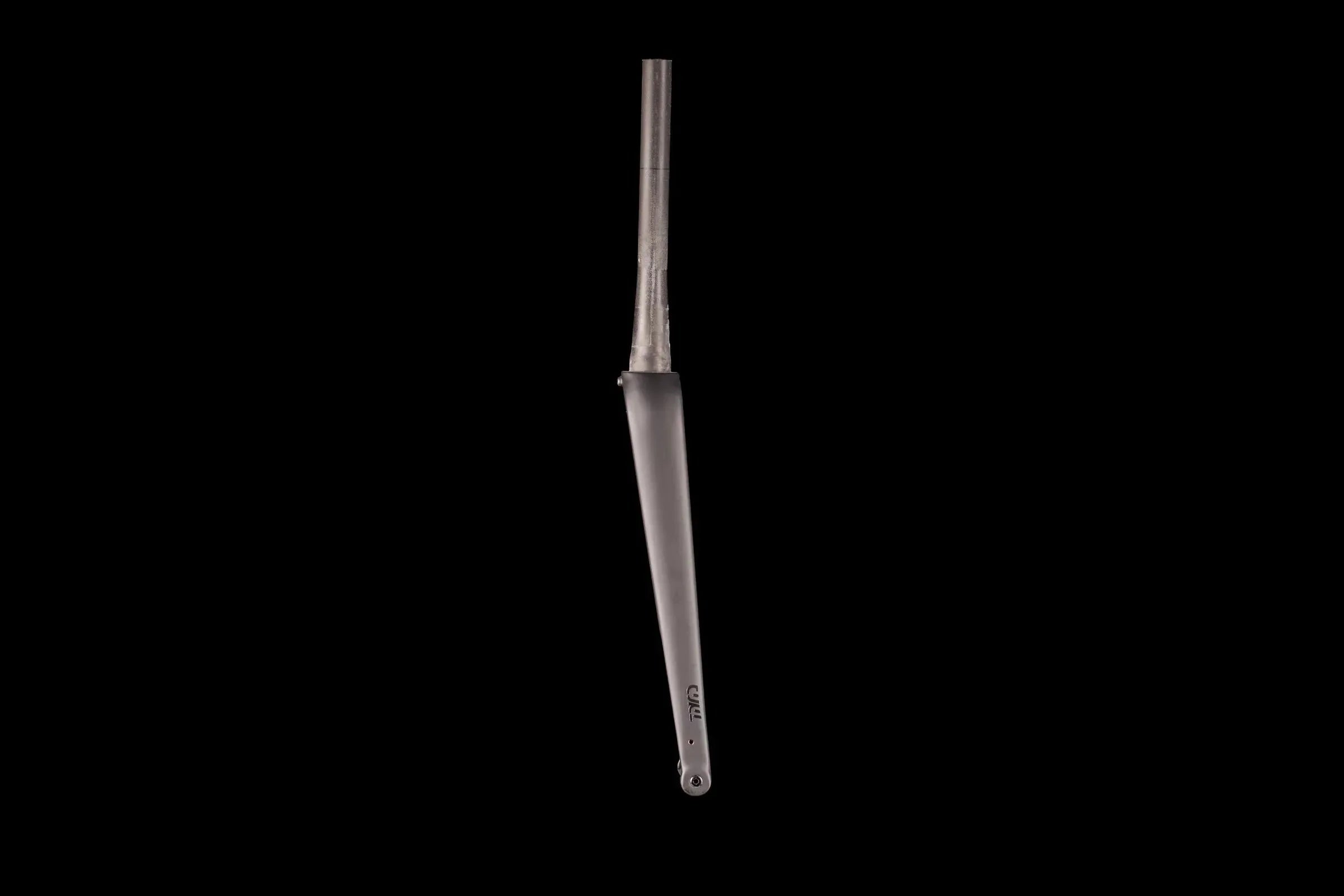

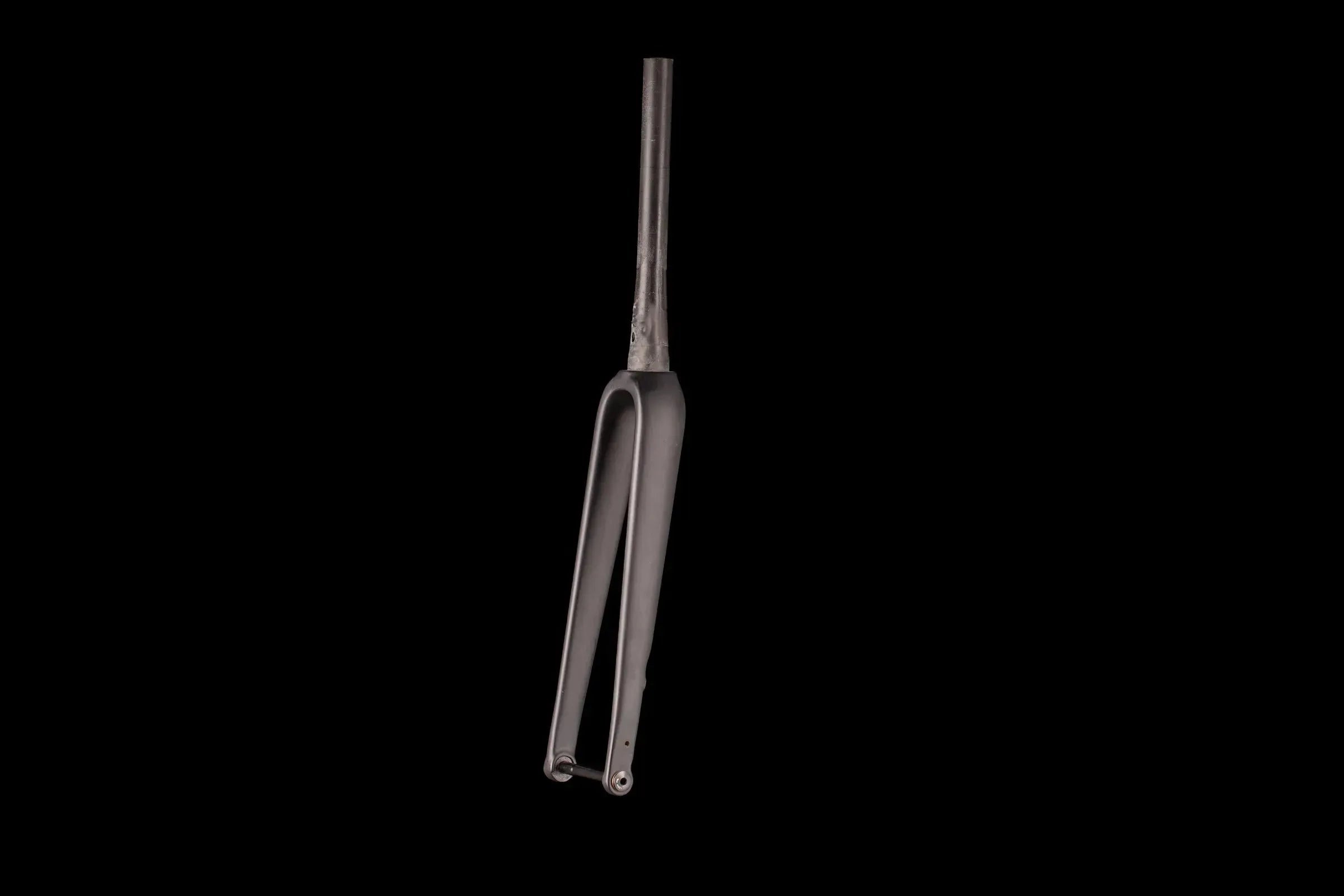

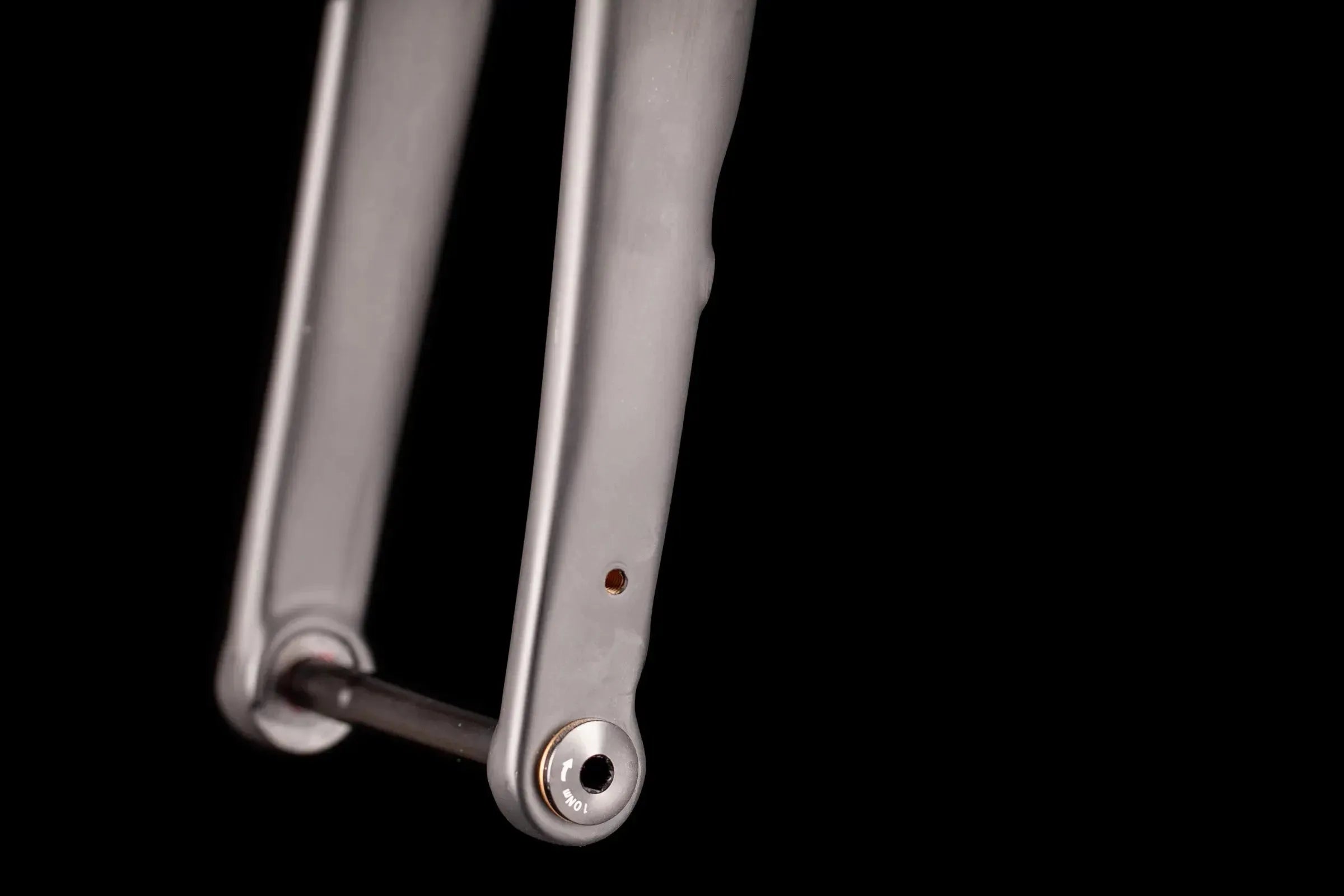

385mm carbon gravel fork
Carbon Gravel Bike Fork
The carbon gravel bike fork was developed specifically for our RAAVE-G bikes. Its crown-to-axle length is 385 mm, which is very short for a gravel fork that can accommodate tires up to 700x45C. This fork provides a lower, sportier position. It is compatible with most bikes on the market. It is an obvious choice for sporty gravel bikes. If you are looking for a performance-oriented fork, then this fork is for you.
Remember to measure the length of your fork to ensure it matches your bike's geometry. If in doubt, don't hesitate to contact us.
This fork has several significant technical features.
Passage of ducts
The fork is available in two versions: internal cable routing or external cable routing. The internal cable routing allows for the complete disappearance of the front brake cable. (subject to compatibility with your existing bike) The external version allows for a more classic semi-integrated cable routing, which makes it compatible with the majority of bikes on the market.
Maximum tire size
Ultra-light
Tapered head tube.
It is important to note that this fork has passed the EN 14781 standard test, ensuring its quality and safety. However, please check the compatibility of this fork with your bike, and respect the use for which it was designed.

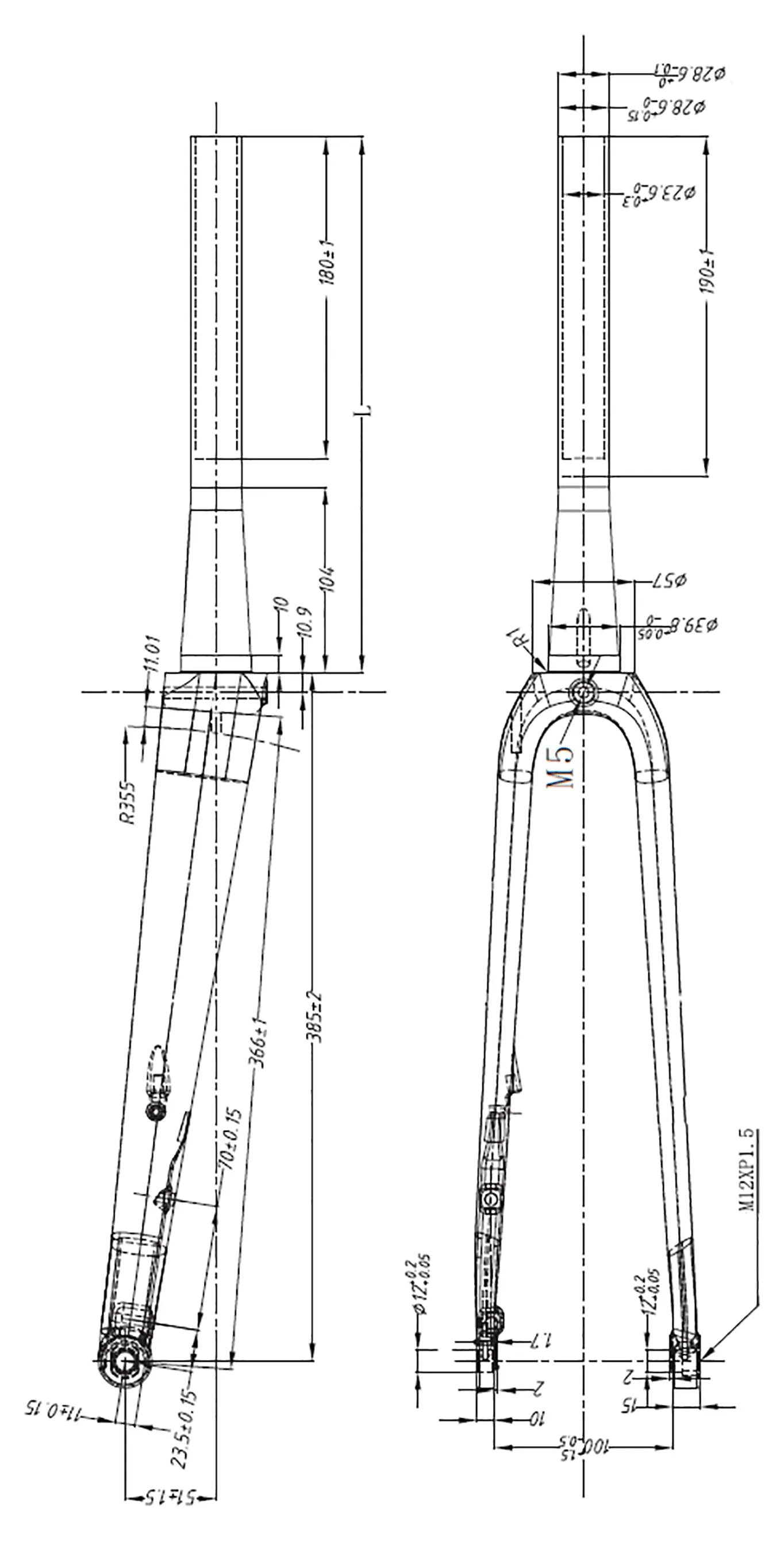

Technical characteristics
- Area of use: Gravel
- Fork length (wheel axle, crown): 385 mm
- Rake offset: 50 mm
- Headset compatible: 1- ½ - 1-⅛
- Thru axle: 100 × 12 mm
- Crown diameter: 57 mm
- Max tire size: 700 × 45 C
- Test standard: EN 14781
Color
- Matte black
Weight
- 395 g +- 15 g
Materials
- Toray T1000 / T800 carbon fiber
Scope of delivery
- 1 x Road fork with internal cable routing
- 1 x Thru axle
