Carbon road cockpit V1

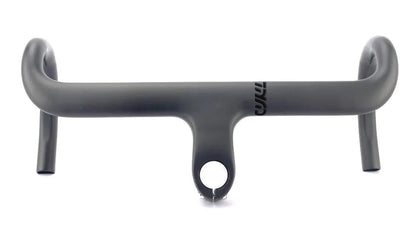

CYKL RTE-01 Carbon ROAD Bike Cockpit
We developed the CYKL RTE-01 Cockpit for our SWIIFT .
We have been careful during its development to make it compatible with other bikes on the market. The CYKL RTE-01 cockpit is a wise choice for cyclists looking to upgrade their road bikes with a fully integrated aerodynamic cockpit. It is available in different widths 380/400/420/440 mm (Our cockpit widths are always measured from axle to axle), as well as several stem lengths of 90/100/110/120 mm. A wide choice of combinations allows you to obtain the dimensions adapted to your morphology for an ideal riding position.
The CYKL road cockpit is made from carbon using Japanese high-modulus TOREY T800 fiber, a material renowned for its strength and lightness. It is designed to withstand the stresses of a responsive and rigid ride. Vibrations are naturally smoothed out while maintaining precise steering.
Its construction offers excellent lightness without compromising comfort, even on uneven surfaces.
The design of our cockpit incorporates several technical details and innovations.
A flattened upper provides aerodynamic benefits and reduces pressure on your hands and carpal tunnel to reduce hand numbness. Their streamlined shape also provides more flexibility to absorb vibrations from the terrain.
A flat surface is also present on the drops to reduce pressure on your hands.
Two screws allow the attachment of a mounting arm for a GPS meter. This mounting arm is available on our website.
The duct passages can be internal or external.
The stem mount on the fork tube is compatible with the OD1 and OD2 standard for forks with a diameter of 31.8 or 21.6 mm with a supplied adapter.
The CYKL Gravel Cockpit is compatible with a wide variety of bike frames. However, please do your research first to ensure compatibility with your bike. If in doubt, please contact us.
Technical characteristics
- Application: Road bike, Gravel bike
- Japanese high modulus Toray T800 carbon fiber
-
Available hanger widths: 380/400/420/440 mm
(Always from axis to axis) - Available stem lengths: 90/100/110/120
- Cable routing: internal
- 1/2-1/2 integrated headsets
- Drop: 120 mm
- Flare: 0°
- Reach: 80 mm
- Duct passages: internal
- Compatibility: mechanical and electronic controllers.
- Color: Matte Black CYKL Logo varnish
- Weight: 350g (420mm wide, 100mm stem)
Scope of delivery
- 1 x Cockpit
- 1 x 20mm spacer
- 1 x 10mm spacer
- 1 x 5mm spacer
- 1 x OD1-OD2 adapter
- 1 x steering bearing cover cup
